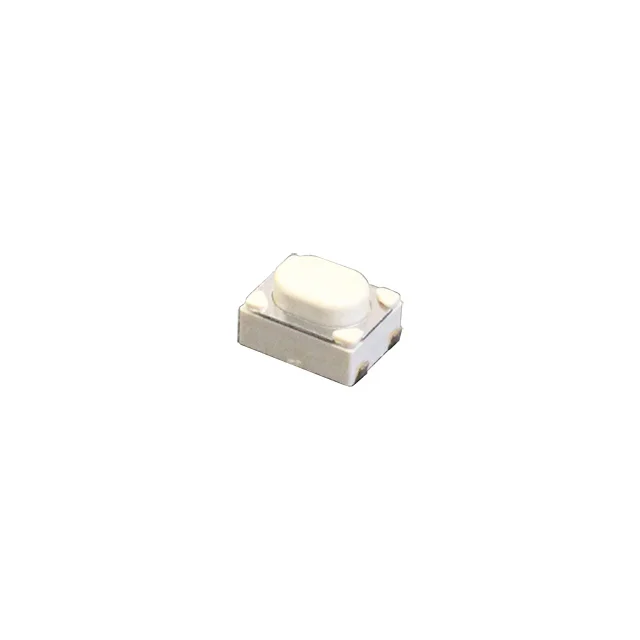

CS1215 Series
Ultra-small and surface mount, the CS1215 tactile switch is SPST and momentary. J-lead termination with actuation force options of 160gF and 260gF. This tact switch has an extended actuator.
Features
Surface Mount, Extended Actuator, J-Lead Termination, Actuator Force Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
J Lead

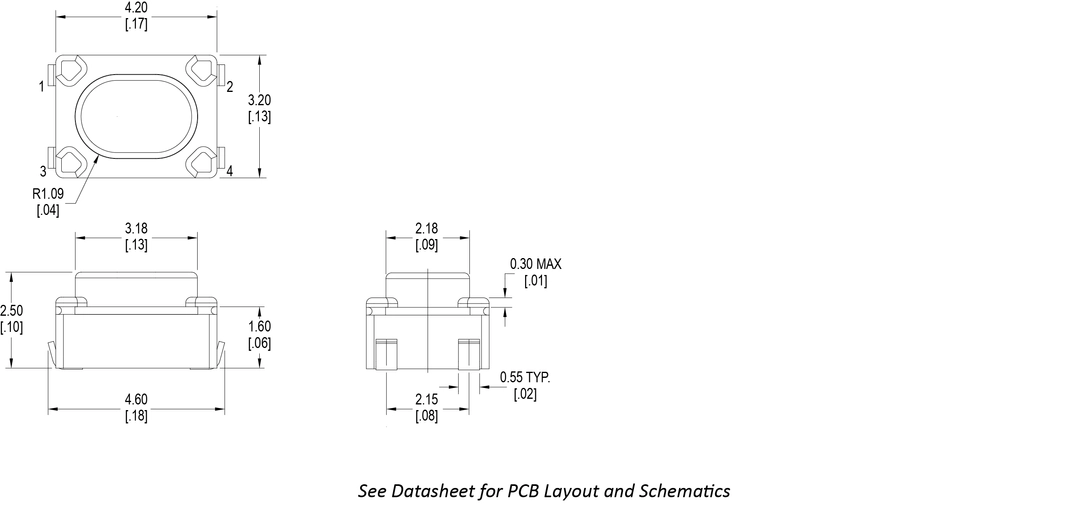

Dimensional Drawing
