CS1104 Series

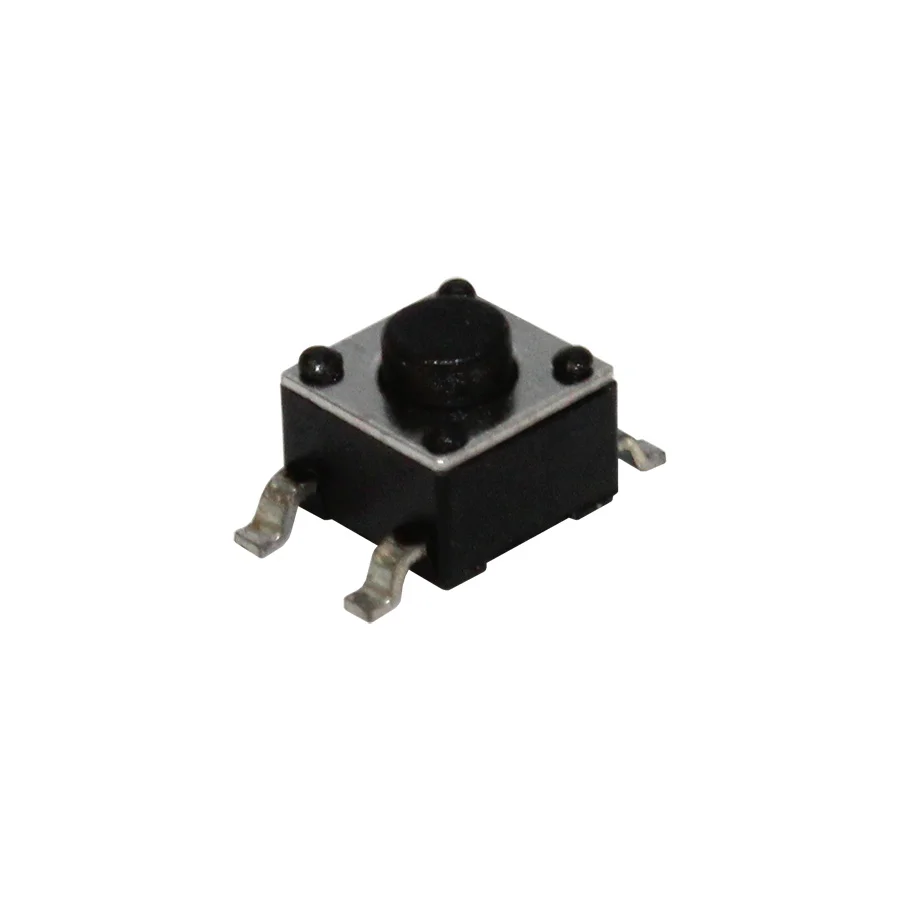

The CS1104 Series tactile switch is SPST momentary with a 4.5mm square body. Offering gull wing termination and an actuator length of 3.8mm, the CS1104 has a choice of 180gF or 260gF actuation force. Actuation travel is 0.25mm.
Features
Surface Mount, Multiple Actuator Options, Multiple Cap Options
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Surface Mount

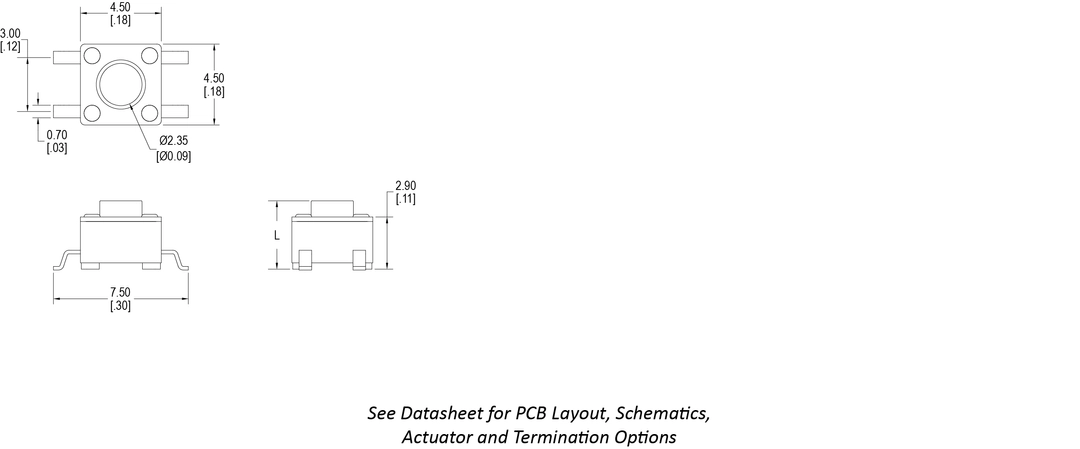

Dimensional Drawing
