CR1102H Series

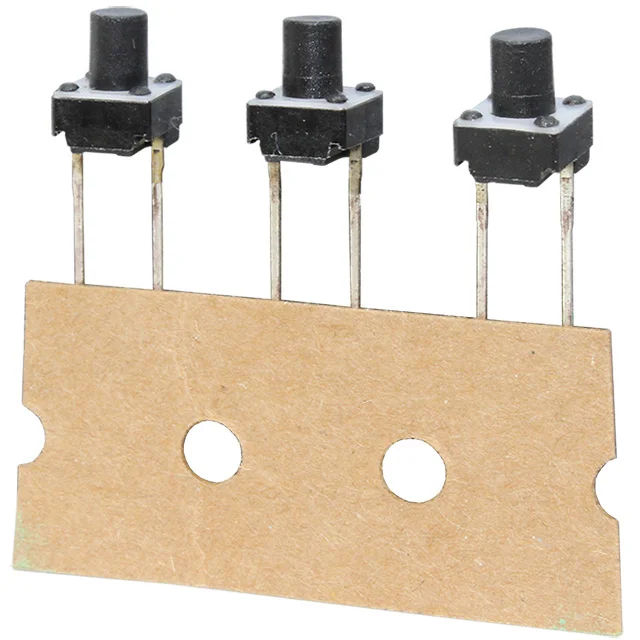

The CR1102H Series tactile switch is in ammo packaging for ease of use. A through-hole switch, the CR1102H is a momentary SPST tactile with a choice of actuation force ranging from 100gF up to 260gF. Actuator travel is .25 ± .1mm and actuator lengths range from 4.3mm up to 9.5mm.
Features
Through-Hole, Actuator Length Options, Actuation Force Options, Ammo Packaging
Specification
Electrical Ratings
50mA@50VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole Ammo Pack

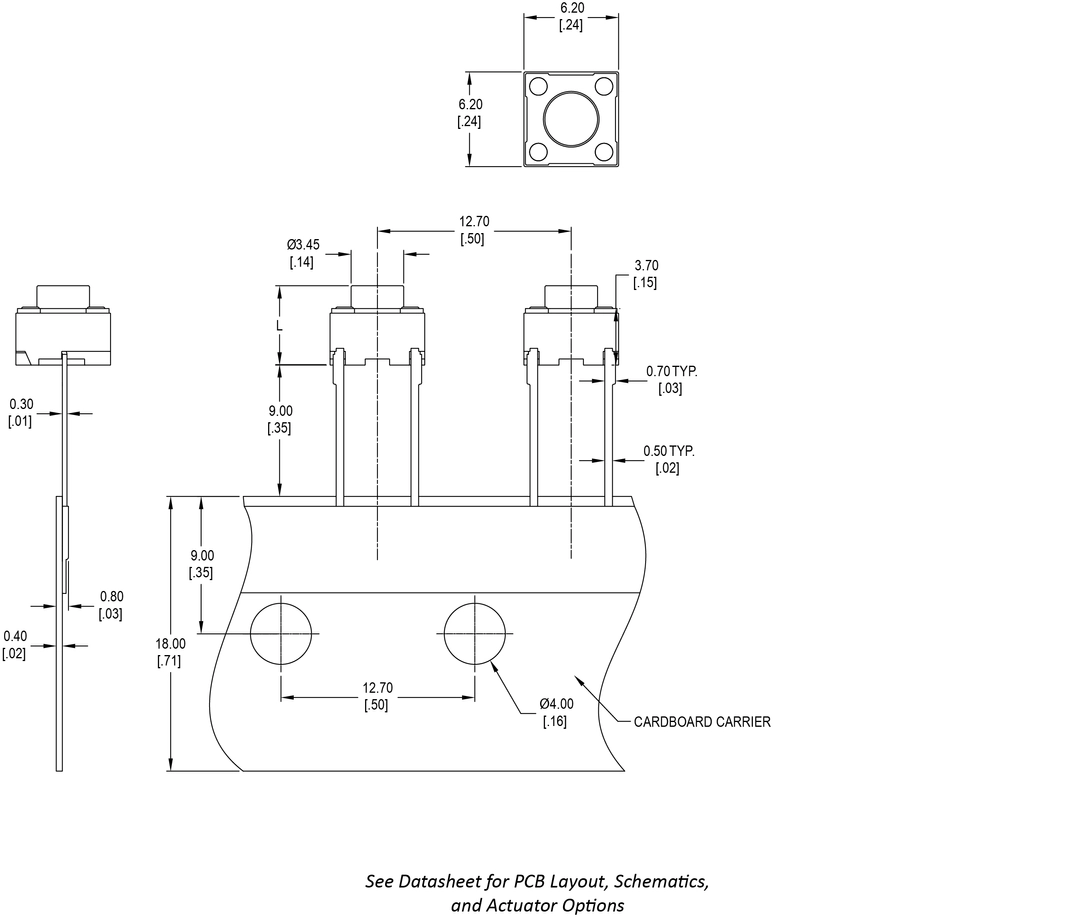

Dimensional Drawing
