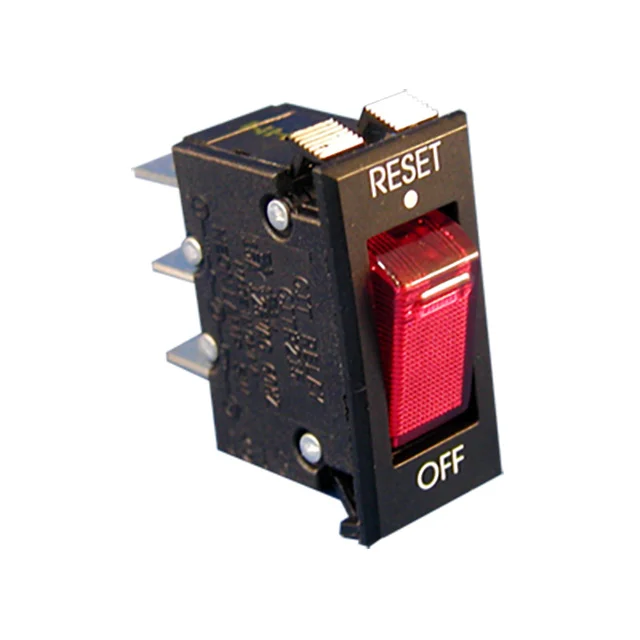

CITR2 Series
The CITR2 Series is SPST with On-Off circuit breaker latching. Offering multiple colored actuators in both opaque or translucent options, the CITR2 Series also offers actuator marking choices. Both short or long quick connect terminal options are available. Illumination option is 125VAC neon bulb with switching up to 20A.
Features
Circuit Breaker Switch, Up to 20A, Illuminated; Interrupt Capacity 2000A@125VAC, 1000A@250VAC
Specification
Electrical Ratings
3A~20A@125VAC, 3A~20A@250VAC
Number Of Poles
SPST
Latching Option
On-Off Circuit Breaker
Terminal Options
Short Quick Connect, Long Quick Connect
Illumination Options
125VAC Neon Bulb

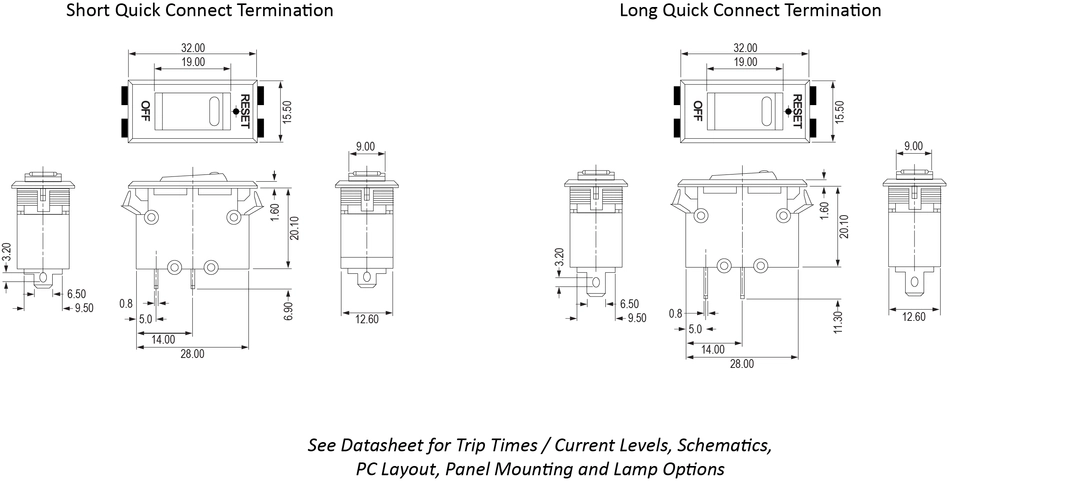

Dimensional Drawing
