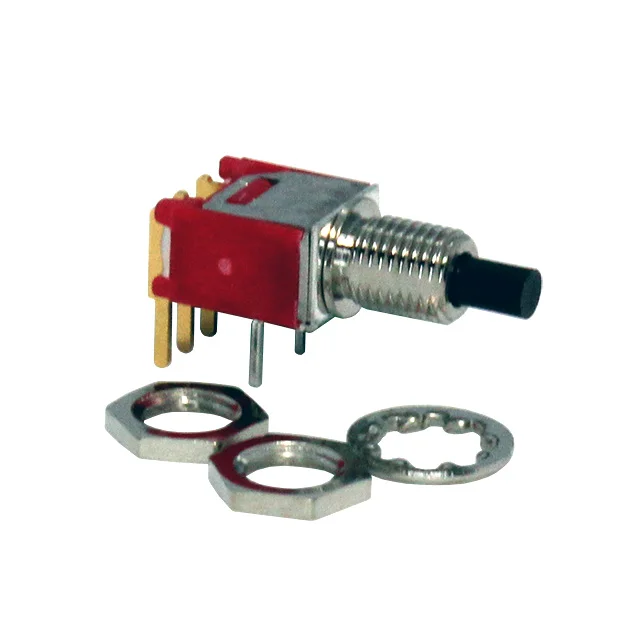

BNP Series
The sub-miniature size BNP series pushbutton switch is available with termination options of solder lug, PC pin, quick connect, horizontal mount right angle, vertical mount right angle, PC pin with support bracket or snap-in support bracket. Both SPDT or DPDT, and momentary or latching, the BNP offers numerous bushing options, cap styles and cap colors.
Features
Sub-Miniature Size, Wide Variety of Terminals, Panel Mount, Gold Contacts Available
Specification
Electrical Ratings
3A@120VAC, 3A@28VDC, 1A@250VAC
Number Of Poles
SPST, SPDT
Latching Option
Momentary
Terminal Options
Solder Lug, PC Pin, Horizontal Mount Right Angle PC Pin, Vertical Mount Right Angle PC Pin, PC Pin with Support Bracket, Snap-In Support Bracket

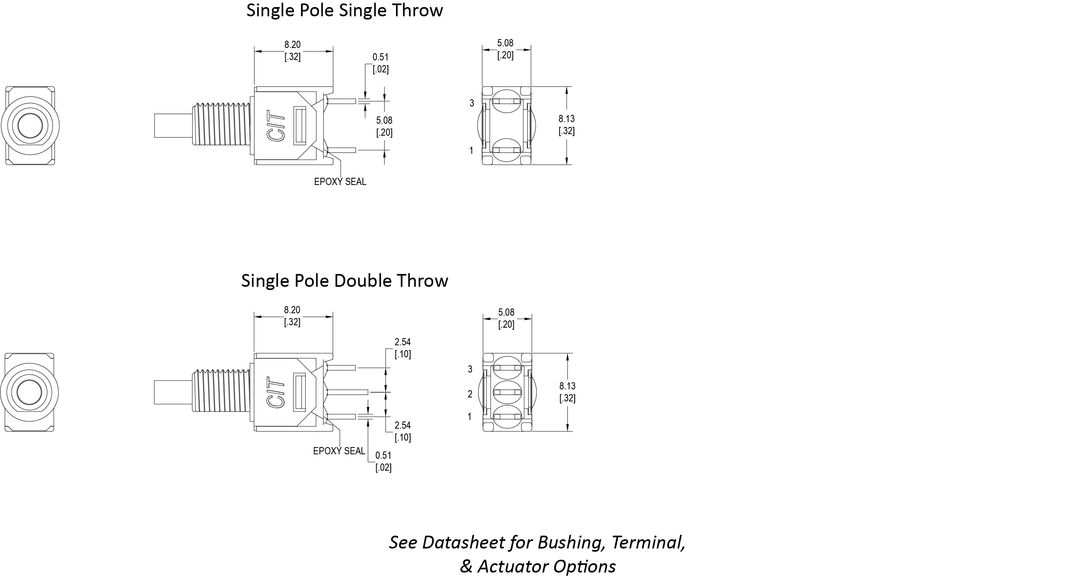

Dimensional Drawing
