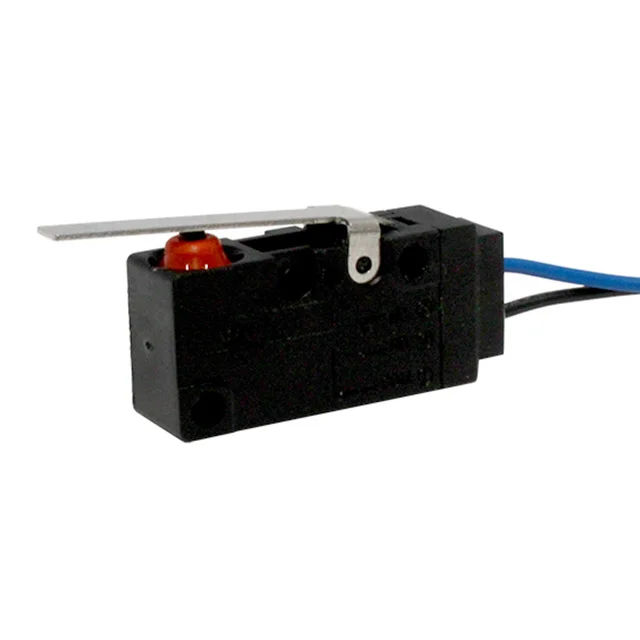

VM3S Series
Miniature and process-sealed, the VM3S Series snap-action switch is UL/cUL and TUV certified for dependable performance. It features multiple actuator stylesincluding plunger, roller, and hinge leversand offers .187 quick connects or 300mm UL 1015 20AWG wire leads. Available in SPST (NO/NC) and SPDT configurations for flexible switching solutions.
Features
Process Sealed, Momentary, Miniature Size, Actuation Force Options, Multiple Lever Options, Multiple Terminal Options, TUV & UL/cUL Certified
Specification
Electrical Ratings
UL : 10.1A@125VAC, 10.1A@250VAC, 10.1A@40T120 5E4, 6(3)A@125VAC, 12(8)A@250VAC, 12(8)A@40T120 5E4, 5A@125VAC inductive, 5A@T120, 0.1A@125VAC, 0.1A@30VDC resistive, 0.1A@T120
Number Of Poles
SPST NO, SPST NC, SPDT
Terminal Options
.187 Quick Connect, 300mm UL 1015 20AWG Wire

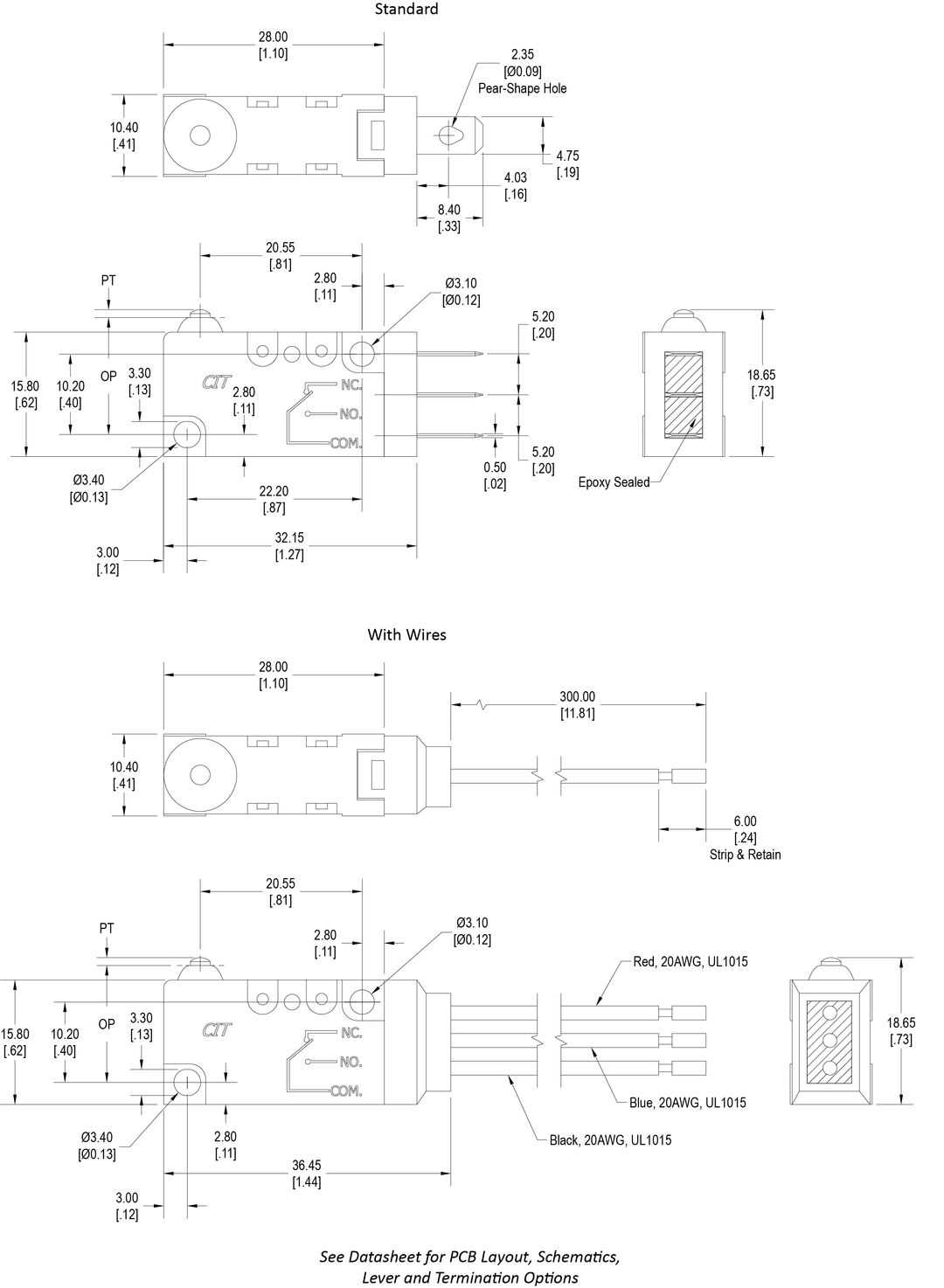

Dimensional Drawing
