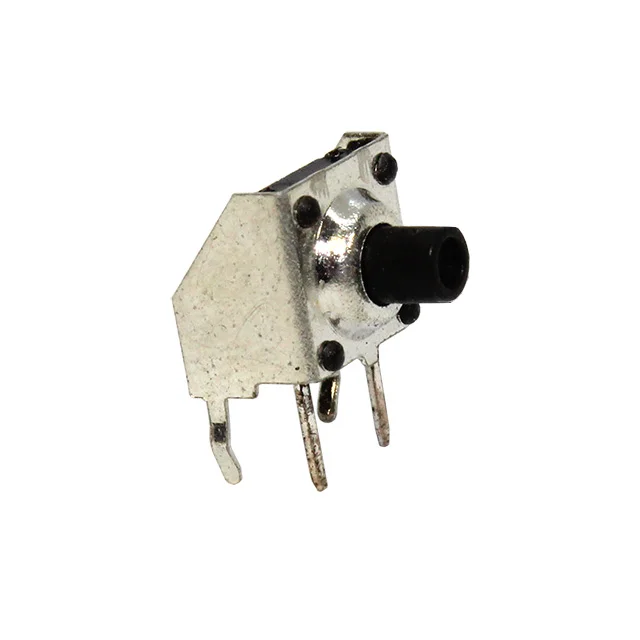

STV Series
The right angle dust proof STV Series tactile switch has through-hole termination. SPST and momentary, the STV offers a stainless steel contact dome and actuation force choices from 160gF up to 520gF. Actuation travel is .45mm with actuator length options of 4.35mm or 8.35mm.
Features
Right Angle, Surface Mount, Stainless Steel Dome Option, Multiple Actuation Force Options
Specification
Electrical Ratings
50mA@48VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Right Angle Dust Proof

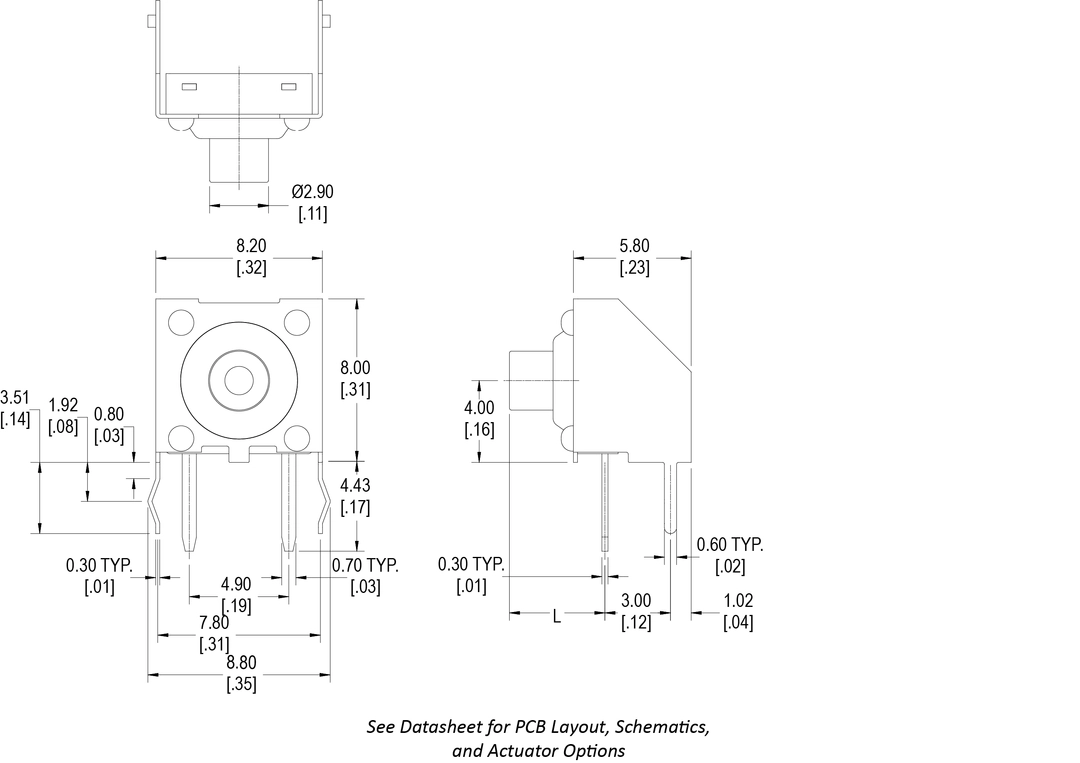

Dimensional Drawing
