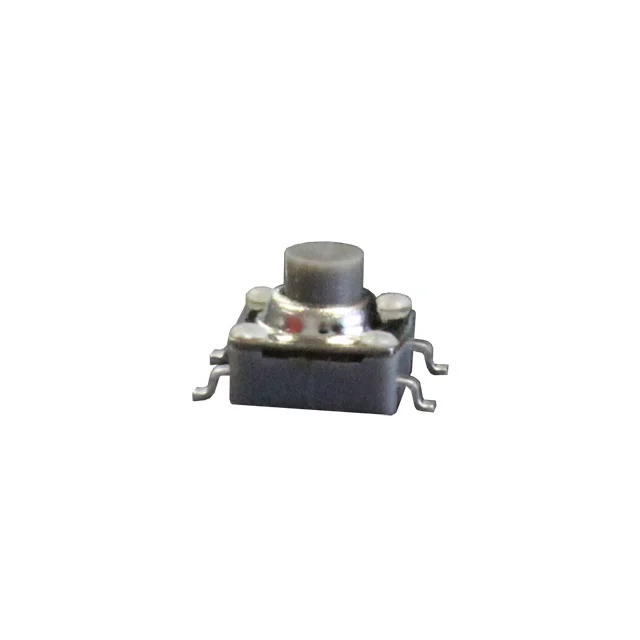

STR Series
The STR Series tactile switch has surface mount gull wing termination with IP67 sealing degree. SPST and momentary, the STR offers actuation force choices from 160gF up to 260gF. Actuation travel is .28mm with actuator length choices of 4.3mm, 5.0mm or 7.3mm.
Features
Surface Mount, IP67 Process Sealed, Stainless Steel Dome Option, Multiple Actuation Force Options
Specification
Electrical Ratings
50mA@48VDC
Sealing Degree
IP67, Process Sealed
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Process Sealed Gull Wing

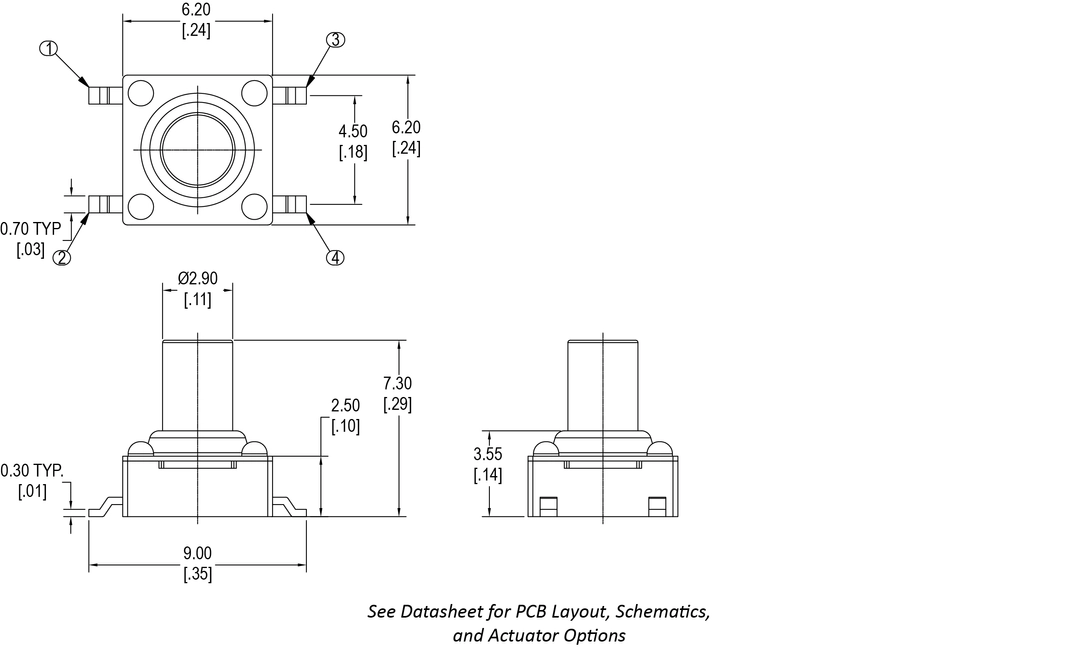

Dimensional Drawing
