ST Series
The ST Series tactile switch has through-hole termination with IP60 sealing degree. SPST and momentary, the ST offers a multi-directional actuator with actuation force choices from 160gF up to 520gF. Actuation travel is 0.45mm.
Features
IP67 Process Sealed, Stainless Steel Dome Option, Multiple Actuation Force Options
Specification
Electrical Ratings
50mA@48VDC
Number Of Poles
SPST
Latching Option
Momentary
Terminal Options
Through-Hole

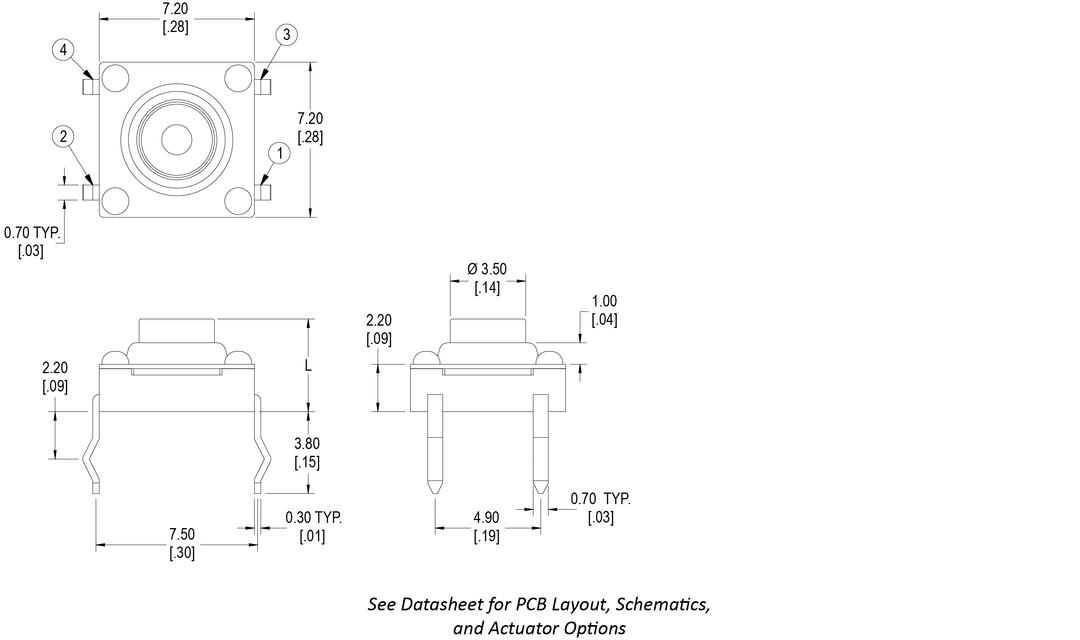

Dimensional Drawing
