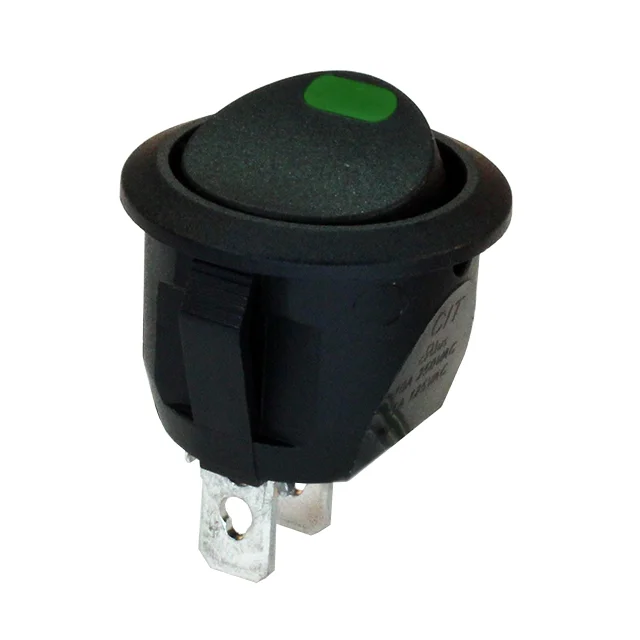

RR2 Series
The illuminated RR2 Series rocker switch is round in shape and miniature in size. SPST with multiple latching options, the RR2 Series offers quick connect/solder lug termination with Off-On switch function. LED color options, include bi-color choices, and lens color options, the RR2 Series is available with multiple housing and actuator color choices. IP40 sealing degree.
Features
Round Body Style, LED Illumination, Multiple Printing Style Options, Multiple Color Options
Specification
Electrical Ratings
UL61058-1, 15A@125VAC, 10A@250VAC
Sealing Degree
IP40
Number Of Poles
SPST
Latching Option
Multiple
Terminal Options
Quick Connect/Solder Lug
Illumination Options
LED

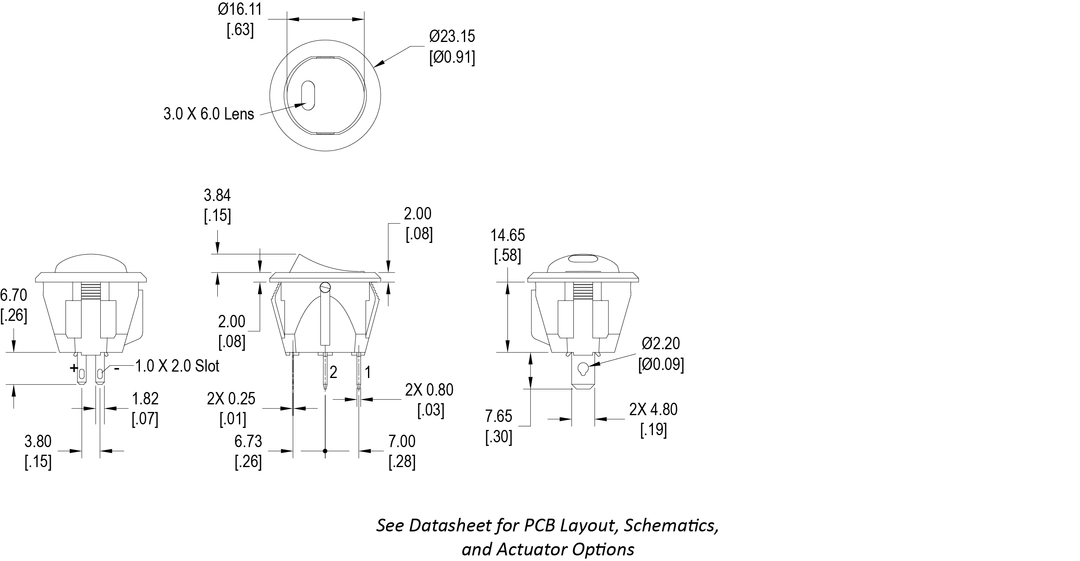

Dimensional Drawing
