RPH Series

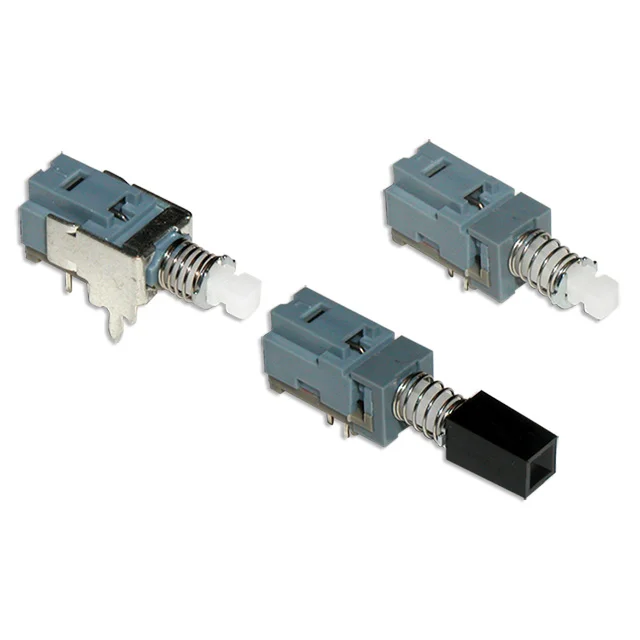

The miniature horizontal RPH Series switch is DPDT, 4PDT or 6PDT, momentary or latching. Offering PC pin or snap-in PC pin terminal options, the RPH is available with a panel mount chassis option and five cap choices in white, black, red, light gray or custom colors.
Features
Miniature Horizontial Style, PC Terminal or Snap-In PC Terminal Options, Panel Mount Chassis Option
Specification
Electrical Ratings
100mA@30VDC
Number Of Poles
DPDT, 4PDT, 6PDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin, Snap-In PC Pin

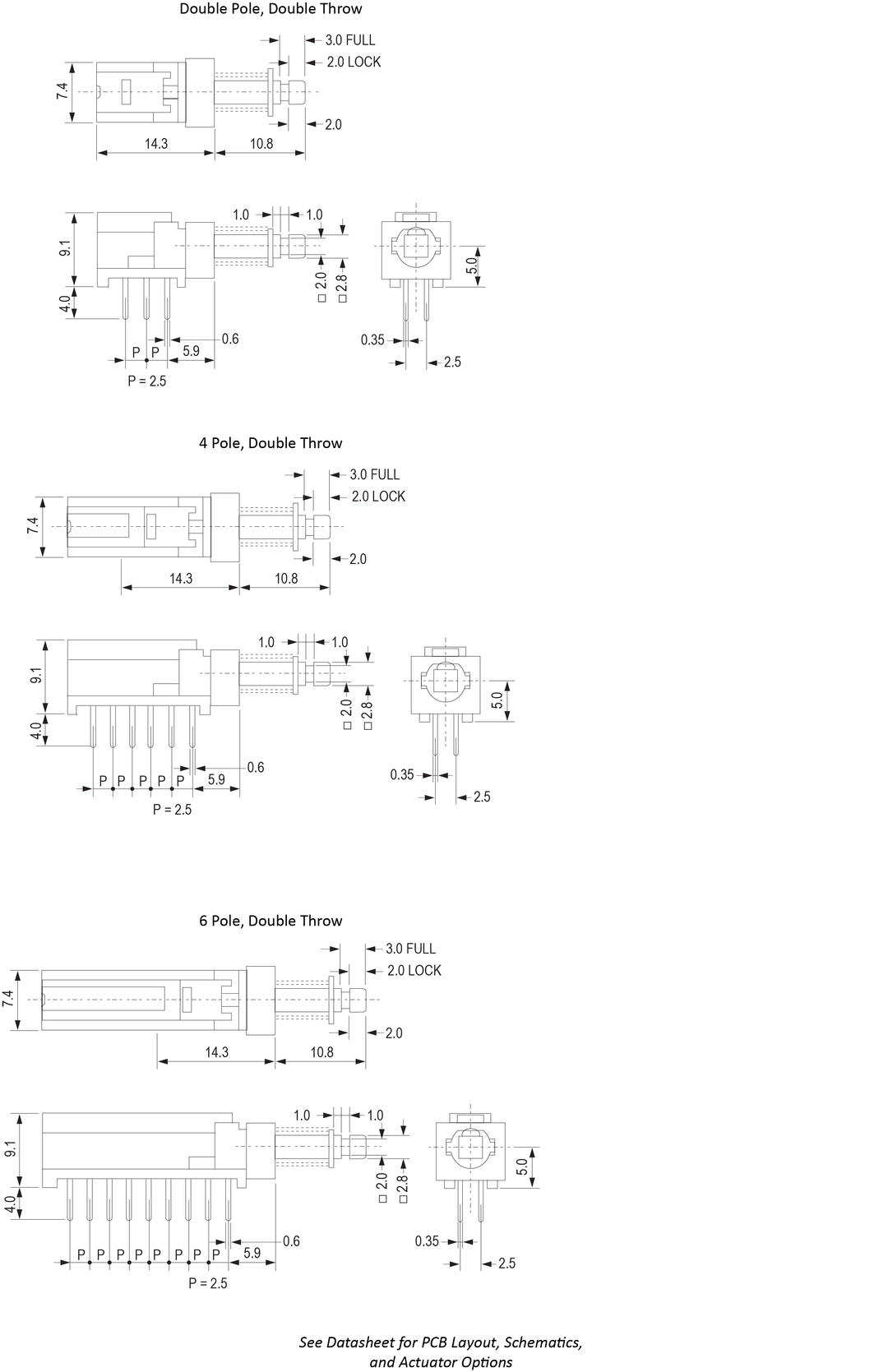

Dimensional Drawing
