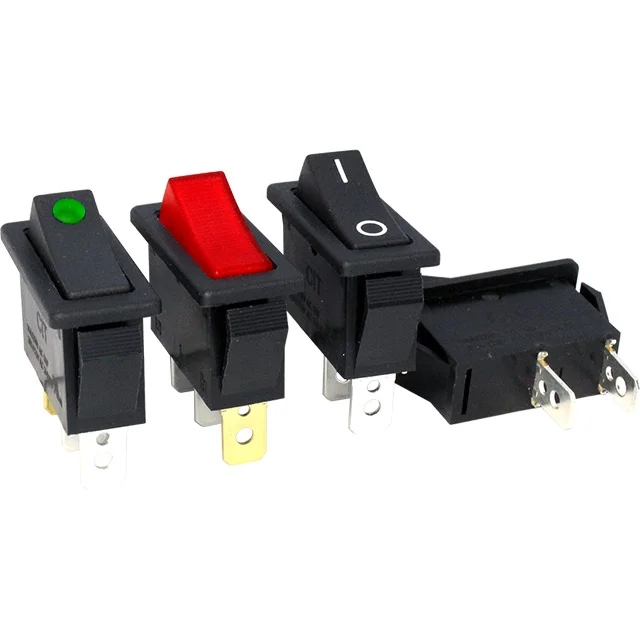

RN Series
The RN Series rocker switch is a 20Amp miniature in size . Multiple latching options are available with quick connect/solder lug termination. Numerous switch functions are available. The versatile RN series offers multiple housing color, actuator color, and actuator marking color choices. IP40 Sealing Degree.
Features
20Amp, Miniature Rocker, Multiple Housing Color Options, Multiple Actuator Color Options, Actuator Marking Options, Ideal for Tight Spacing, IP40
Specification
Electrical Ratings
UL61058-1, 20A@125VAC, 16A@250VAC, 1hp@250VAC, 3/4hp@125VAC
Number Of Poles
SPST, DPST
Latching Option
Multiple
Terminal Options
Quick Connect/Solder Lug
Dimensional Drawing
