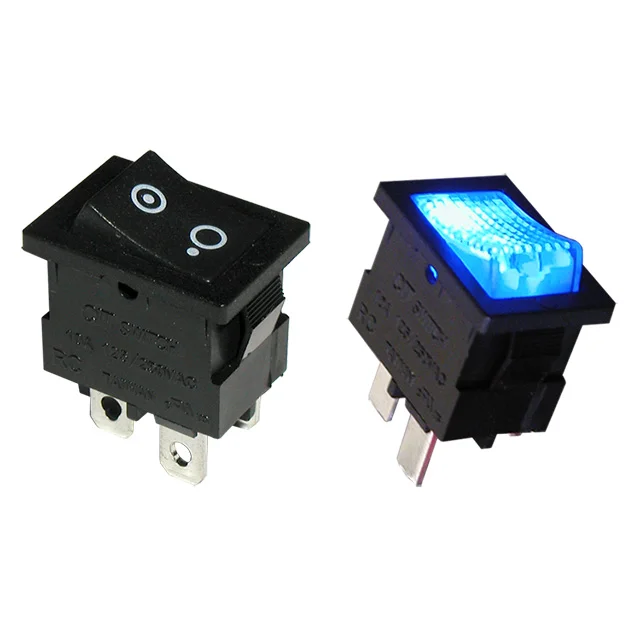

RC Series
The RC Series rocker switch offers an illuminated option with a choice of SPST or DPST. Multiple latching options are available with terminal options of quick connect/solder lug, PC pins, right angle PC pins or left angle PC pins. Switch function is Off-On. The versatile RC series offers multiple housing color, actuator color, including colored transparent, and actuator marking color choices. IP40 Sealing Degree
Features
Illuminated Option, Multi-Function, Multiple Actuator Marking Options, Right or Left Angle Option, IP40
Specification
Electrical Ratings
UL61058-1, 12A@125VAC, 12A@250VAC, TV5@125VAC
Number Of Poles
SPST, DPST
Latching Option
Multiple
Terminal Options
Quick Connect/Solder Lug, PC Pins, Right Angle PC Pins, Left Angle PC Pins
Illumination Options
125VAC Neon Bulb, 250VAC Neon Bulb, LED
LED Voltage
12VDC, 24VDC

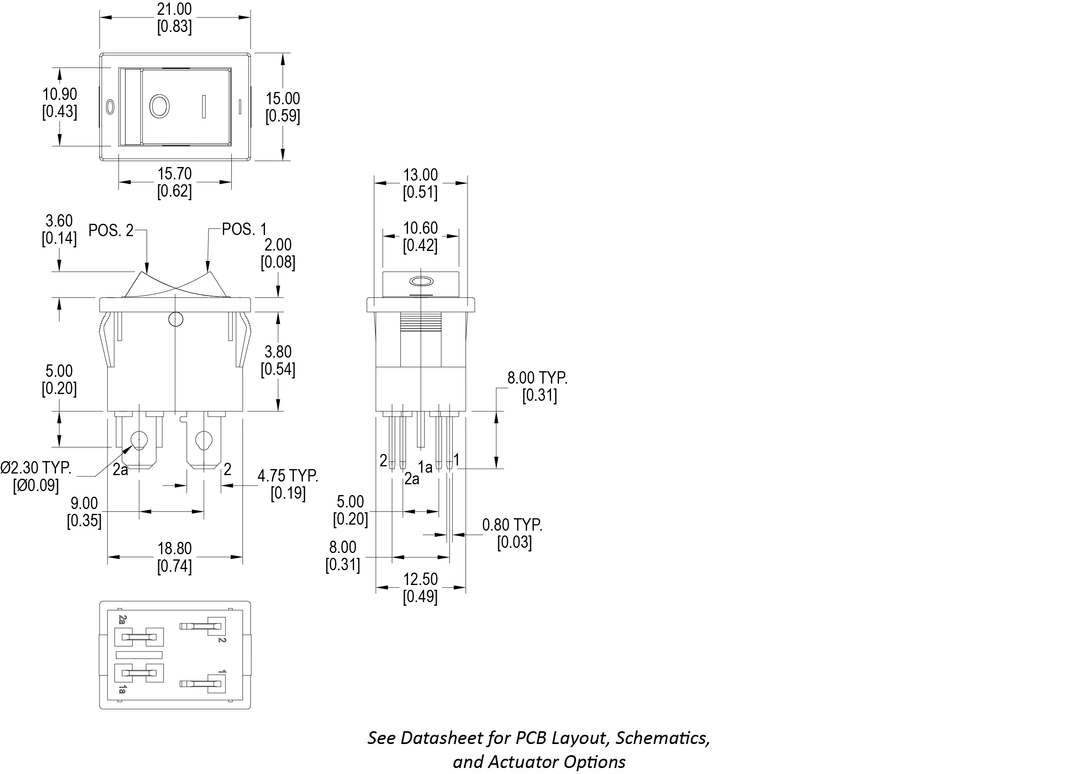

Dimensional Drawing
