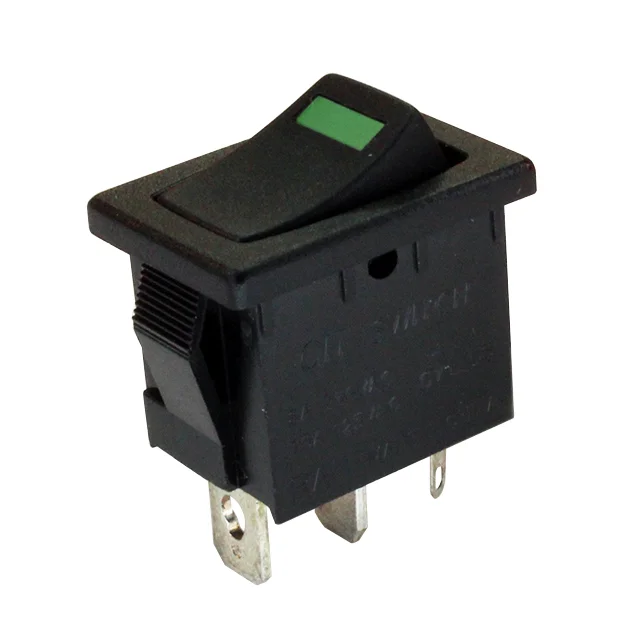

RA Series
The RA Series rocker switch offers an illuminated option with a choice of SPST or SPDT. Multiple switch function options are available with terminal options of quick connect/solder lug, PC pins, right angle PC pins or left angle PC pins. The versatile RA series offers multiple housing color, actuator color and actuator marking color choices. IP40 Sealing Degree or IP65 with Sealing Boot.
Features
Illuminated Option, Multi-Function, Multiple Actuator Marking Options, Right Angle Option, IP40 or IP65
Specification
Electrical Ratings
UL61058-1, 15A@125VAC, 10A@250VAC
Number Of Poles
SPST, SPDT
Latching Option
Multiple
Terminal Options
Quick Connect/Solder Lug, PC Pins, Right Angle PC Pins, Left Angle PC Pins
Illumination Options
LED
Dimensional Drawing
