Specification
Contact Rating
50A@30VDC/240VAC resistive, 35A@30VDC/240VAC resistive, 40A@30VDC/240VAC resistive, 30A@30VDC/240VAC resistive, 13A@277VAC resistive, 1hp@125VAC resistive, 1/4hp@120VAC resistive, TV-5@240VAC lamp, 5A@280VAC ballast, 2hp@250VAC motor load, 1.5hp@250VAC motor load
Contact Forms
1A, 1C
Coil Voltage
5VDC, 6VDC, 9VDC, 12VDC, 15VDC, 24VDC, 48VDC, 110VDC
Mounting Methods
PC Pin
Agency Approvals
UL E93379

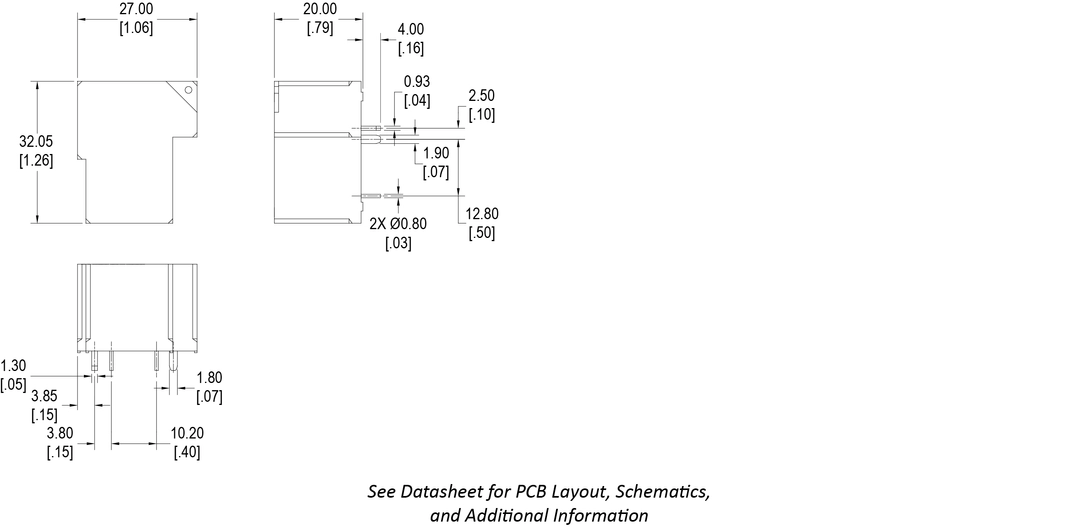

Dimensional Drawing
