Specification
Contact Rating
40A@30VDC/240VAC resistive, 30A@30VDC/240VAC resisitve, 20A@240VAC resistive, 25A@277VAC resistive, 30A@240/277VAC general purpose, 20A@240/277VAC general purpose, 5A@280VAC general purpose, 2hp@250VAC motor load, 1.5hp@250VAC motor load, 1hp@120VAC motor load, 5A@280VAC ballast, 30A@240/277VAC resisitive
Contact Forms
1A, 1B, 1C
Coil Voltage
12VAC, 24VAC, 110VAC, 120VAC, 220VAC, 240VAC, 277VAC
Mounting Methods
Quick Connect
Agency Approvals
UL E93379

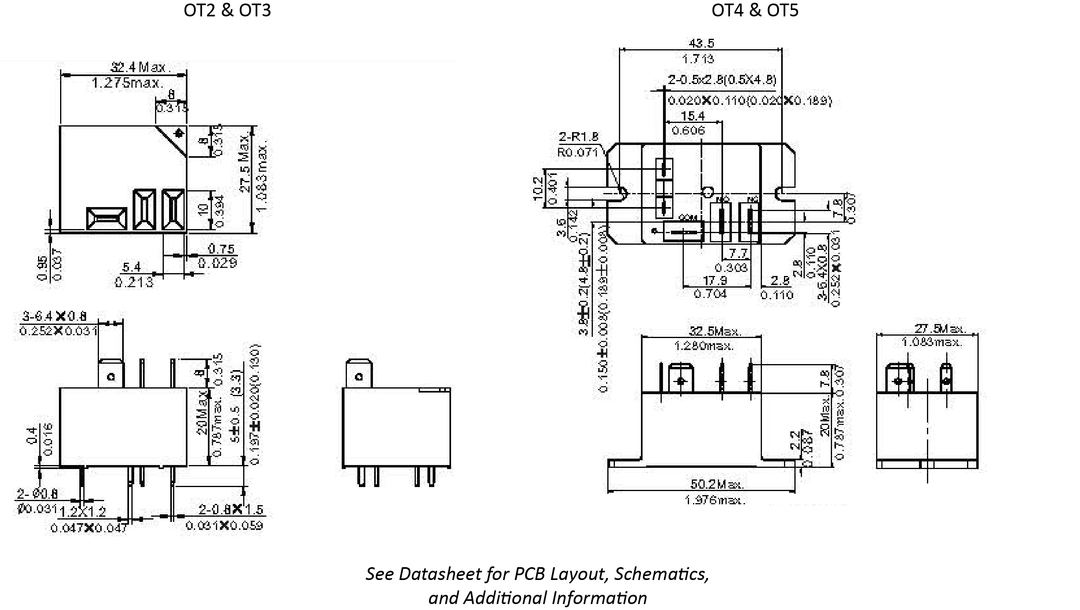

Dimensional Drawing
