Specification
Contact Rating
12A@125VAC resistive and general purpose, 10A@30VDC/277VAC resistive and general purpose, TV-5@125VDC
Contact Forms
1A
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC
Mounting Methods
PC Pin
Agency Approvals
UL E86876

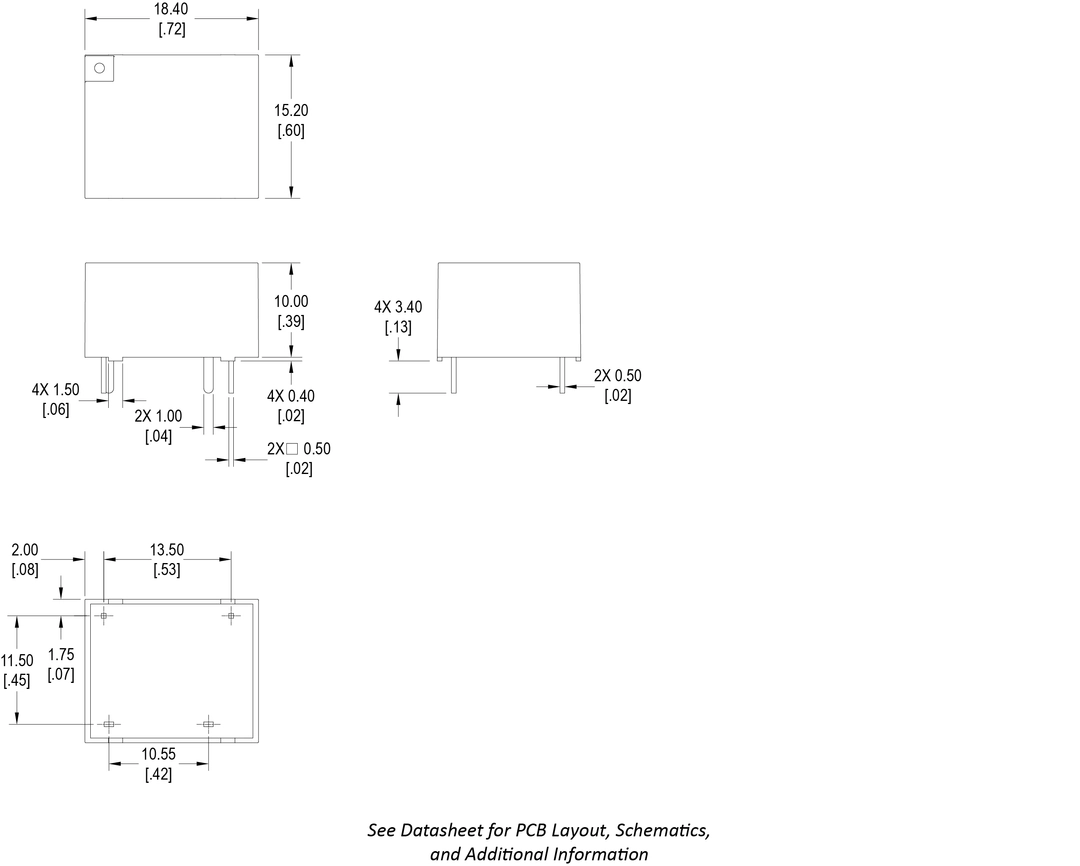

Dimensional Drawing
