PC792B

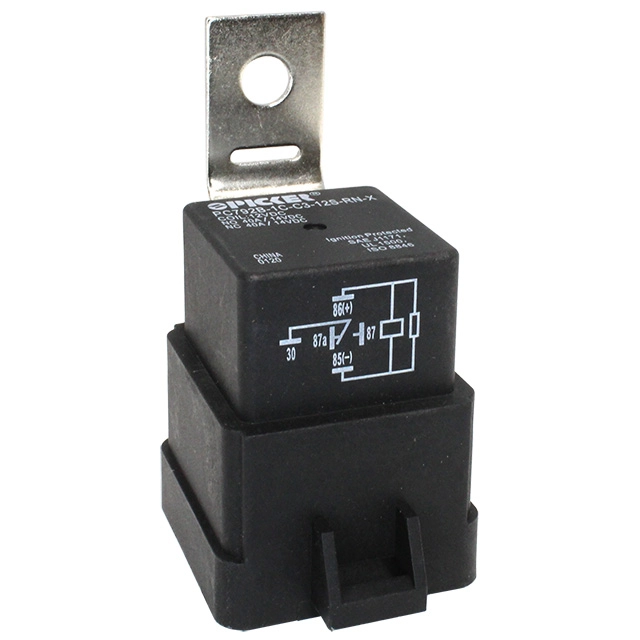

PC792B Series

40 Amp Automotive Plug-In / PCB Mini ISO Relay

Features

Automotive Plug-In PCB Mini ISO Relay, 40 Amps Continuous Carrying Current, Internal Diode, Reverse Diode or Resistor, Sockets Available, Shrouded Version

Datasheet in PDF

Specification

Contact Rating

40A@14VDC resistive, 20A@28VDC resistive

Contact Forms

1A, 1AA, 1C

Coil Voltage

6VDC, 9VDC, 12VDC, 24VDC, 48VDC

Mounting Methods

PC Pin, Quick Connect

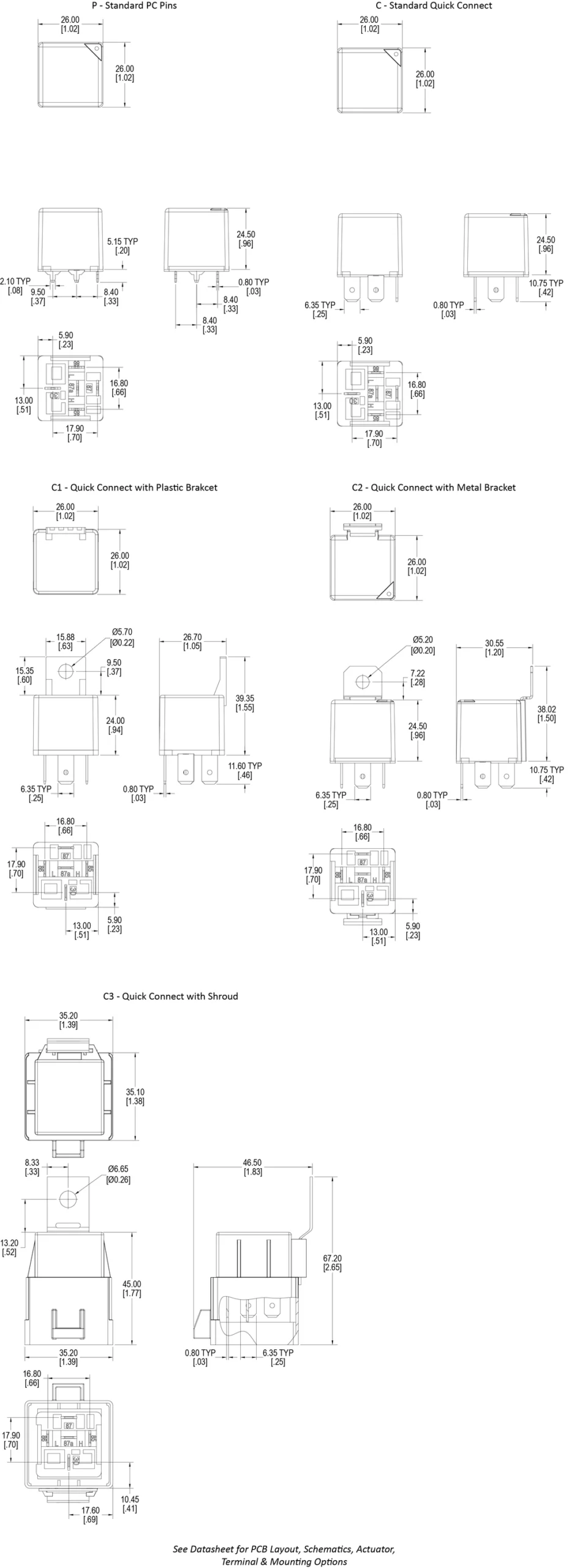

Dimensional Drawing
