PC775

PC775 Series

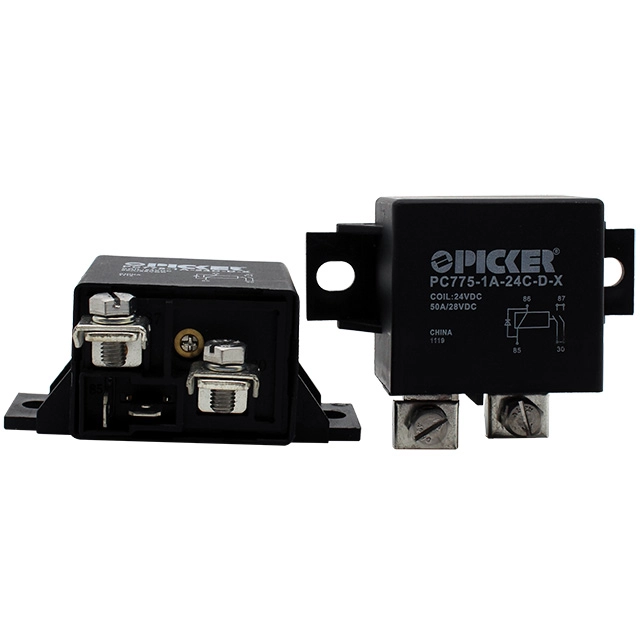

75 Amp Screw Terminal Automotive Relay

Features

75 Amp Screw Terminal Automotive Relay, 150 Amp Max Switching Current, Bifurcated Contacts, 6VDC, 12VDC or 24VDC, Class H Insulation

Datasheet in PDF

Specification

Contact Rating

75A@14VDC, 50A@28VDC

Contact Forms

1A

Coil Voltage

6VDC, 12VDC, 24VDC

Mounting Methods

Screw Terminal

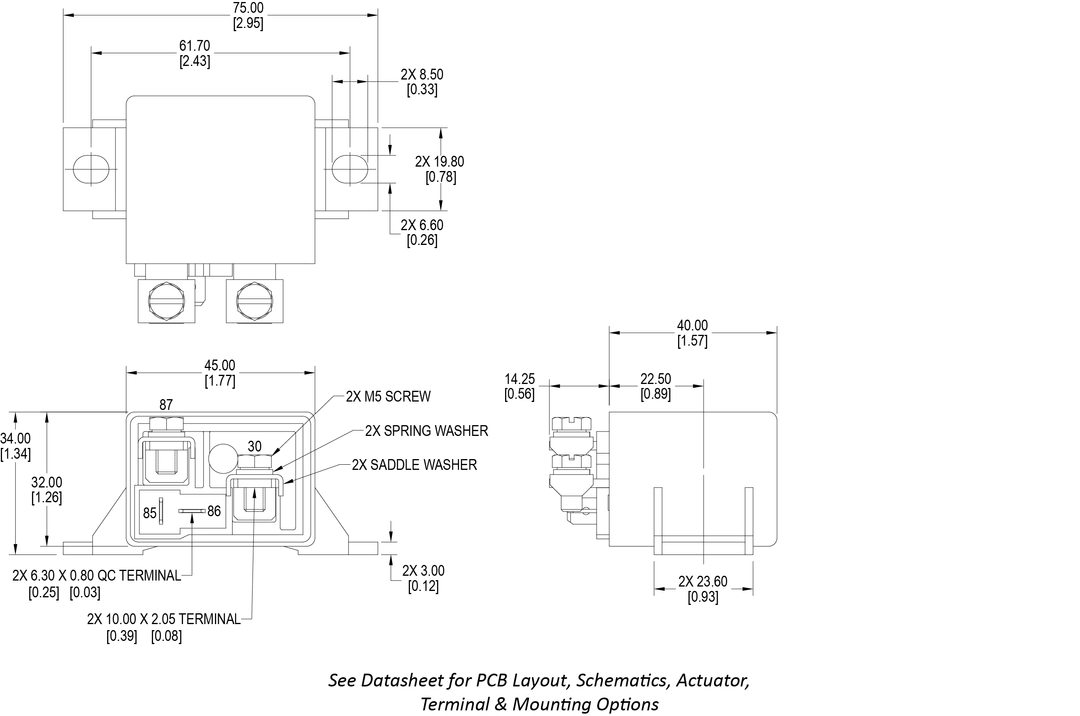

Dimensional Drawing
