Specification
Contact Rating
12A@28VDC/125VAC general purpose, 10A@28VDC/125VAC general purpose, 10A@240VAC resistive, 6A@28VDC/300VAC resistive
Contact Forms
1A, 1C
Coil Voltage
5VDC, 6VDC, 9VDC, 12VDC, 15VDC, 18VDC, 24VDC, 48VDC
Mounting Methods
PC Pin
Agency Approvals
UL E86876

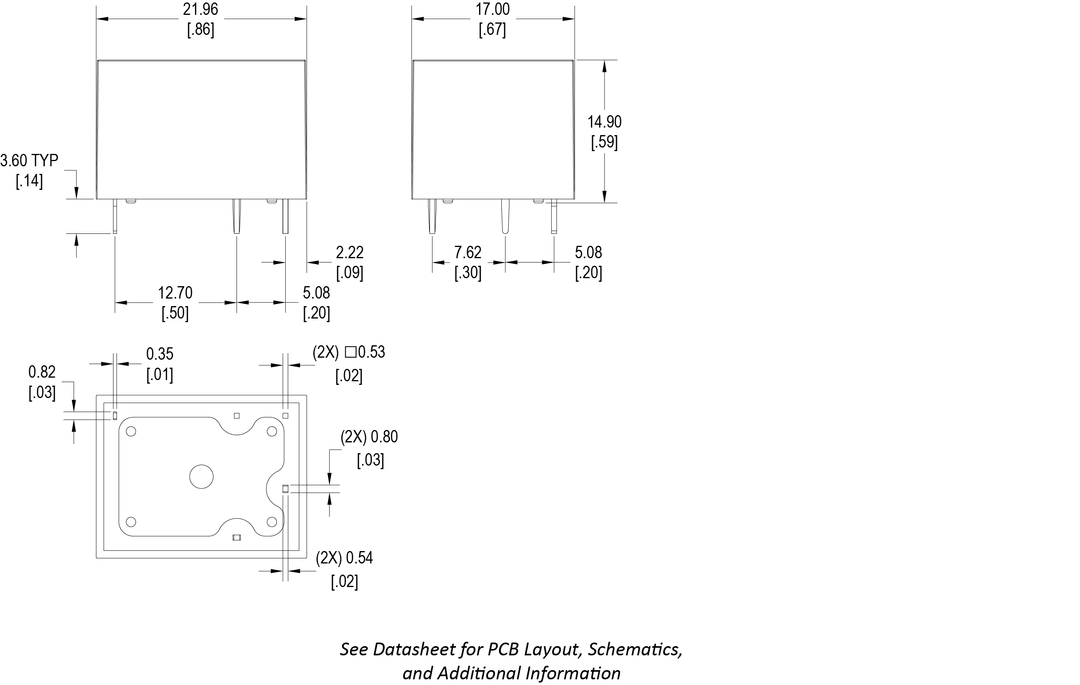

Dimensional Drawing
