PC302

Relay-PC302

PC302 Series

Microminiature 1 Amp Signal Relay

Features

Microminiature Design, DIL Package for PC Board or Socket, Low 5mm Profile, Bifurcated Contacts for High Sensitivity

Datasheet in PDF



Specification

Contact Rating

1A@30VDC resisitive, 0.5A@120VAC resistive

Contact Forms

2C

Coil Voltage

5VDC, 9VDC, 12VDC, 24VDC

Mounting Methods

PC Pin

Agency Approvals

UL E86876

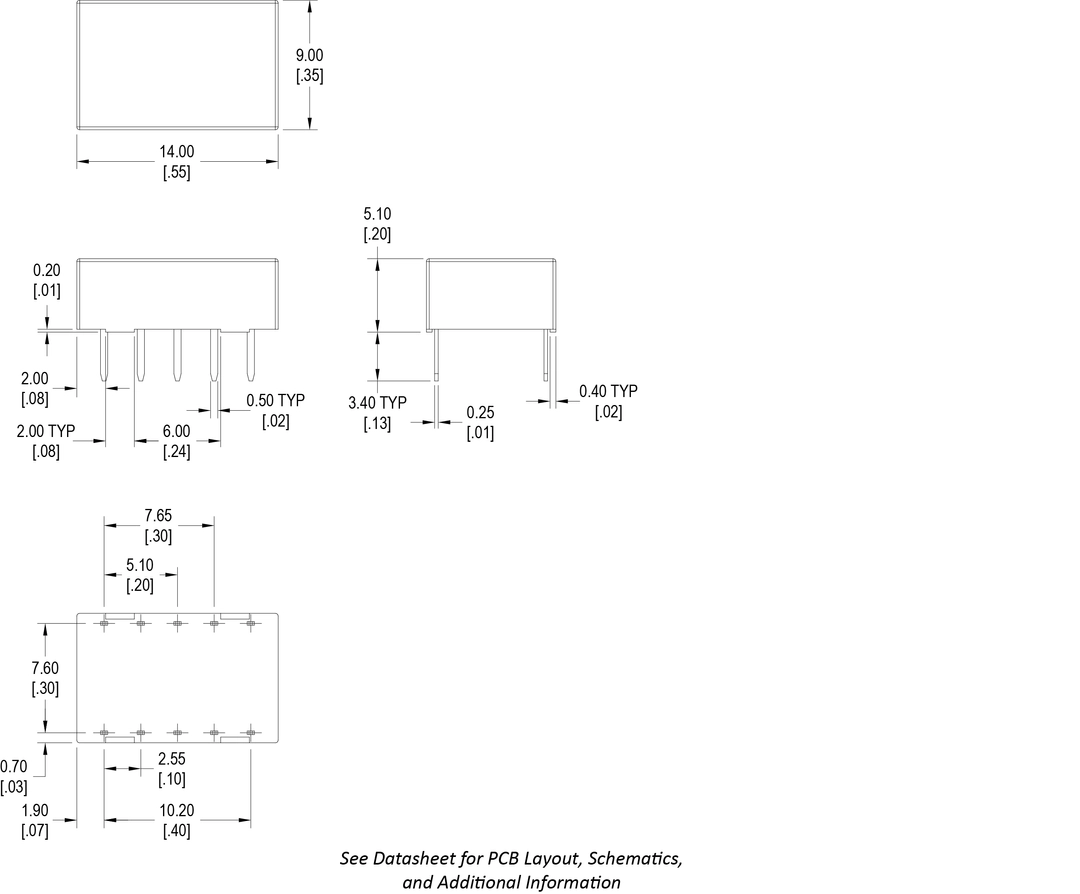

Dimensional Drawing
