Specification
Contact Rating
1C : 20A@28VDC/277VAC general purpose; 2C : 12A@28VDC/250VAC general purpose, 10A@277VAC general purpose, 1/2hp@125VAC motor load
Contact Forms
1A, 1C, 2A, 2C
Coil Voltage
12VDC, 24VDC, 36VDC, 48VDC, 110VDC, 220VDC, 12VAC, 24VAC, 36VAC, 48VAC, 120VAC, 220VAC, 240VAC
Mounting Methods
PC Pin, Quick Connect
Agency Approvals
UL E86876

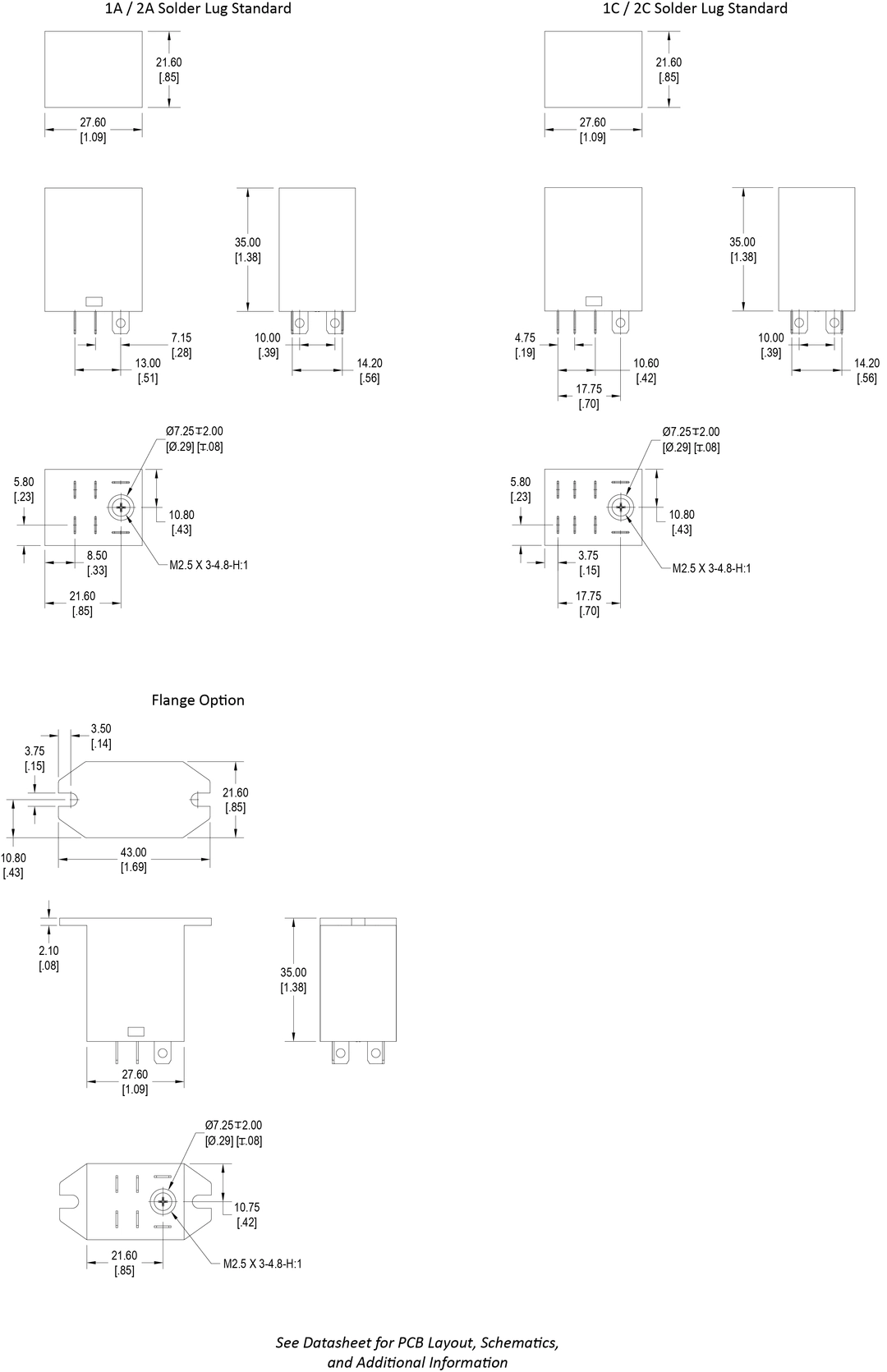

Dimensional Drawing
