MS4208

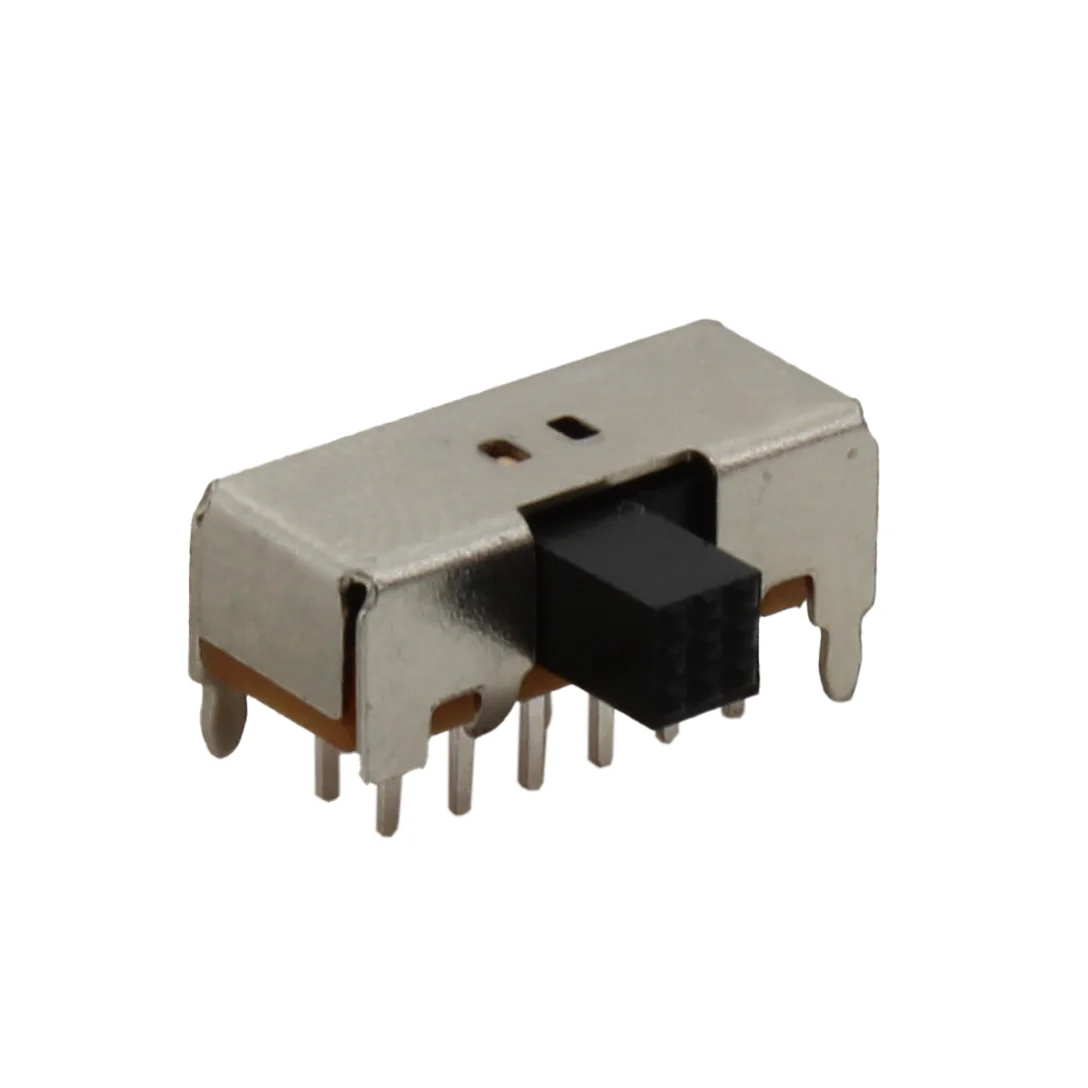

Switch-MS4208

MS4208 Series

4P2T and miniature in size, the MS4208 Series is a right angle slide switch with steel housing and offering multiple actuator lengths.

Features

Right Angle, Miniature Size, Multiple Actuator Lengths, Steel Housing

Datasheet in PDF



Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

4P2T

Latching Option

Multiple

Terminal Options

PC Pin

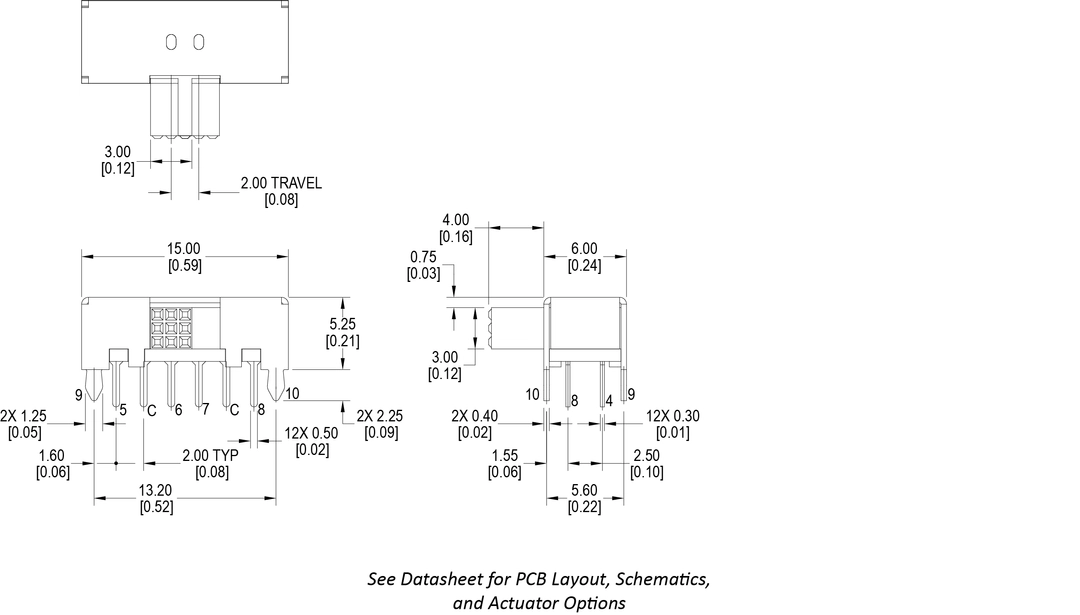

Dimensional Drawing
