MS2305

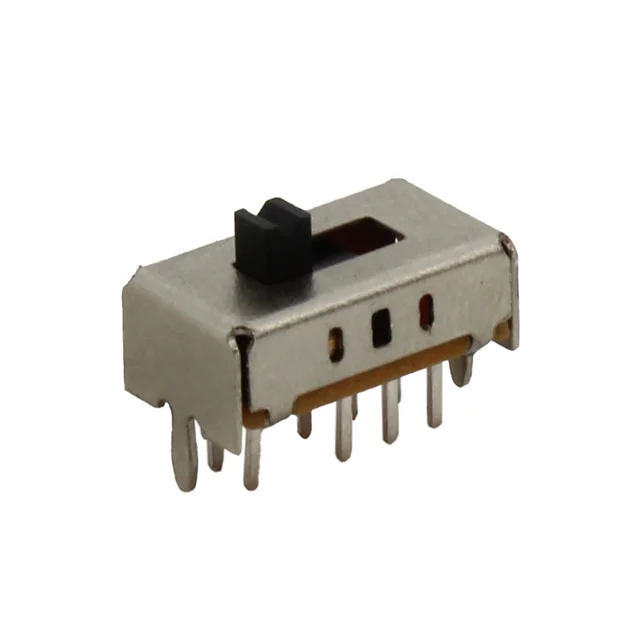

MS2305 Series

Sub-miniature in size, the MS2305 is DP3T with steel housing, multiple actuator lengths and multiple positions with total actuator travel of 4.0mm.

Features

Sub-Miniature Size, Multiple Actuator Lengths, Multiple Positions, Steel Housing

Datasheet in PDF

Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

DP3T

Latching Option

Multiple

Terminal Options

PC Pin

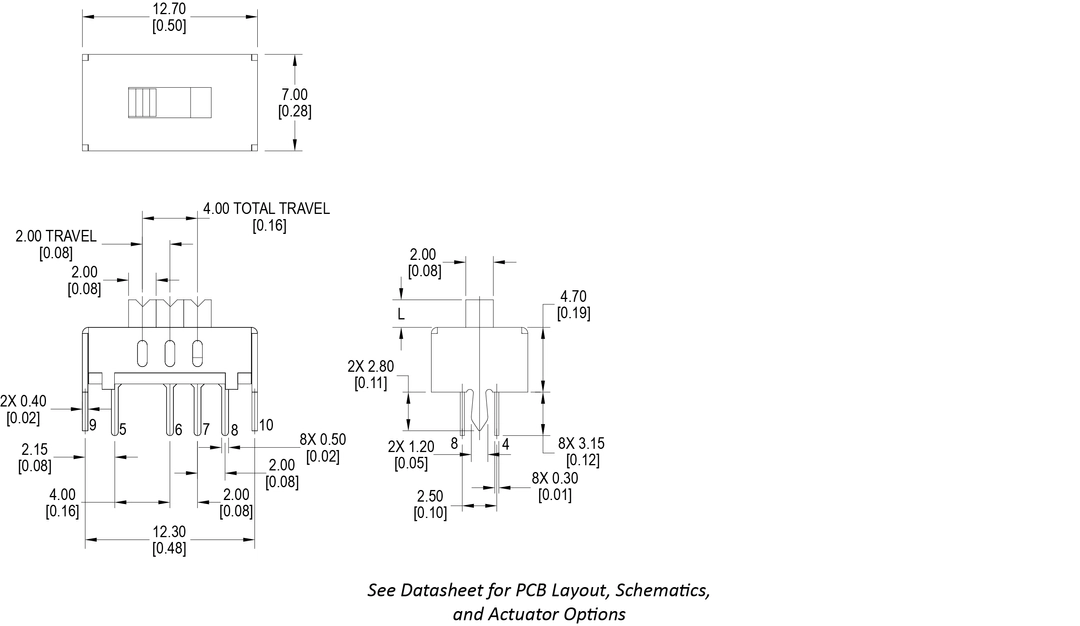

Dimensional Drawing
