MS2219

Switch-MS2219

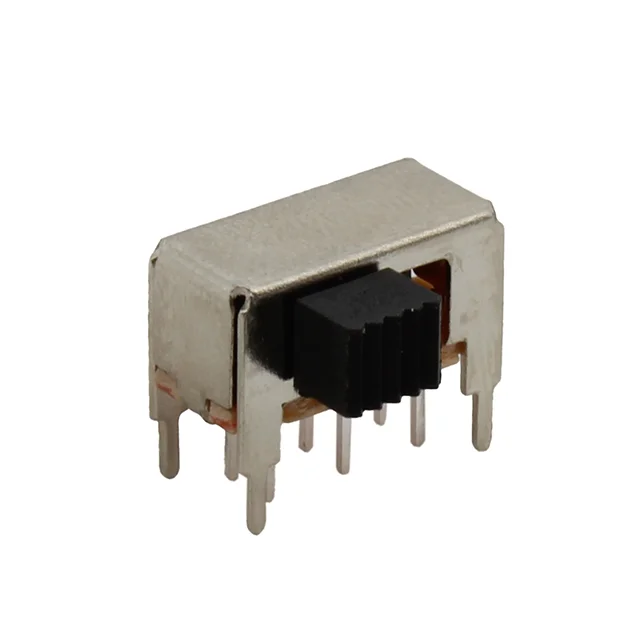

MS2219 Series

DPDT and miniature in size, the MS2219 Series slide switch offers actuator lengthof 4.0mm and steel housing.

Features

Right Angle, Miniature Size, Steel Housing

Datasheet in PDF



Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

DPDT

Latching Option

Multiple

Terminal Options

PC Pin

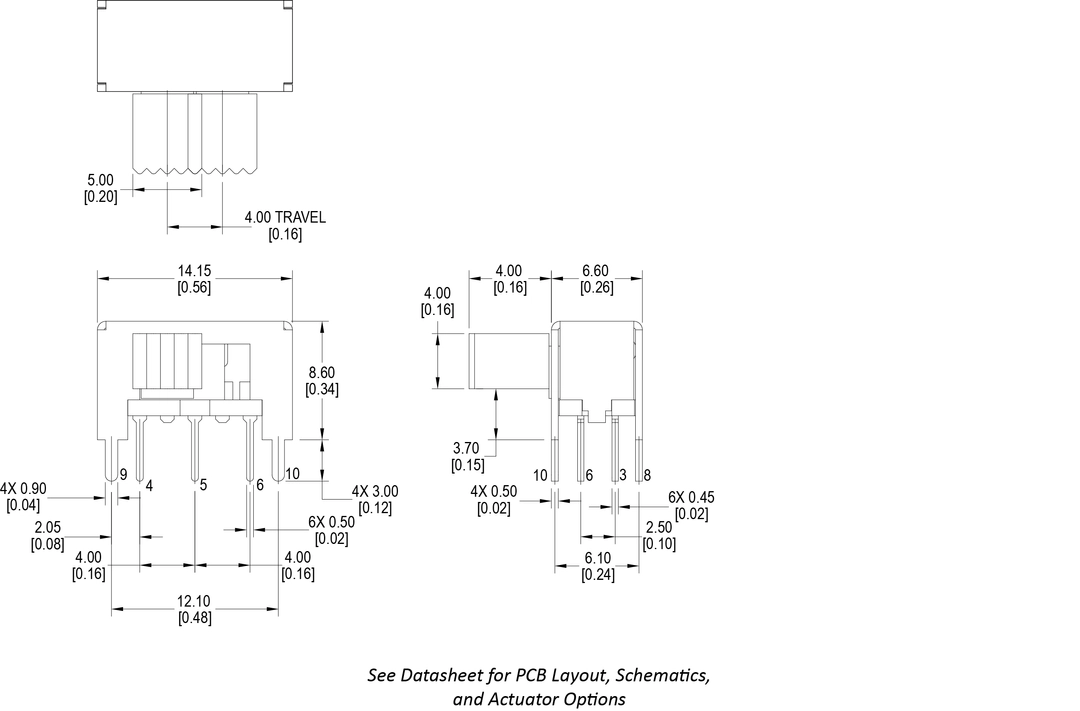

Dimensional Drawing
