MS2202

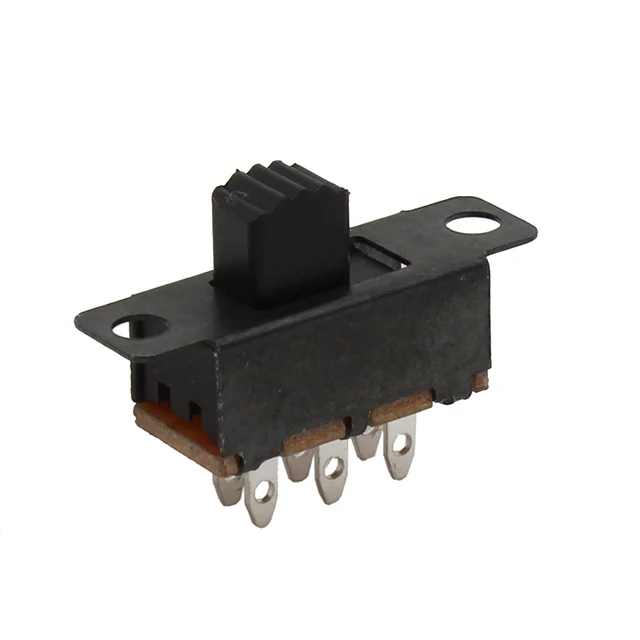

Switch-MS2202

MS2202 Series

With mounting hole options and multiple actuator lengths, the MS2202 Series slide switch is miniature in size, DPDT and offers nylon housing.

Features

Miniature Size, Multiple Actuator Lengths, Mouting Hole Options, Nylon Housing

Datasheet in PDF



Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

DPDT

Latching Option

Multiple

Terminal Options

PC Pin

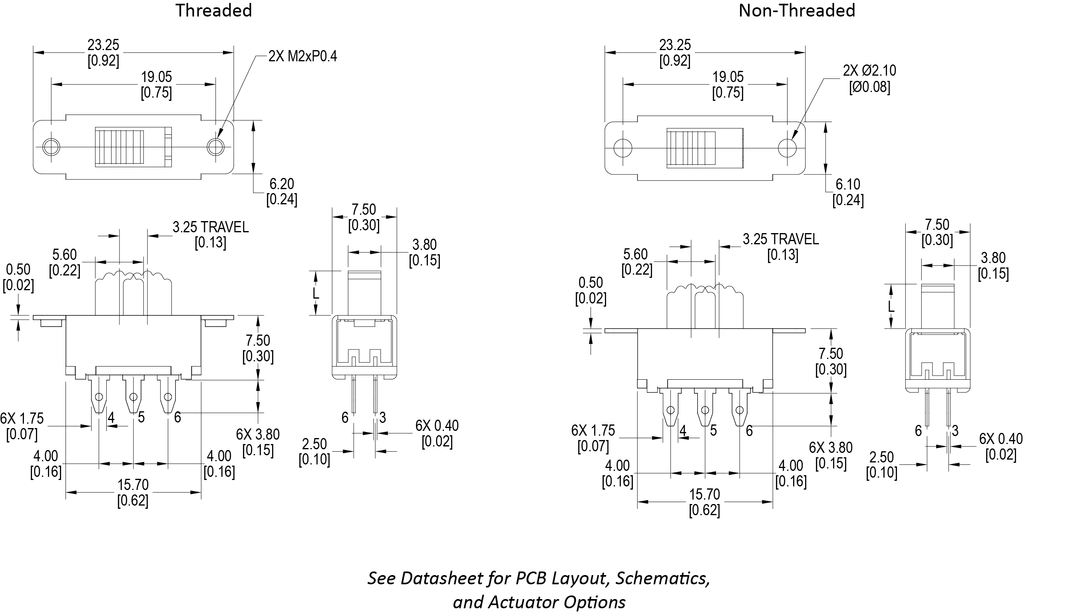

Dimensional Drawing
