MS1247

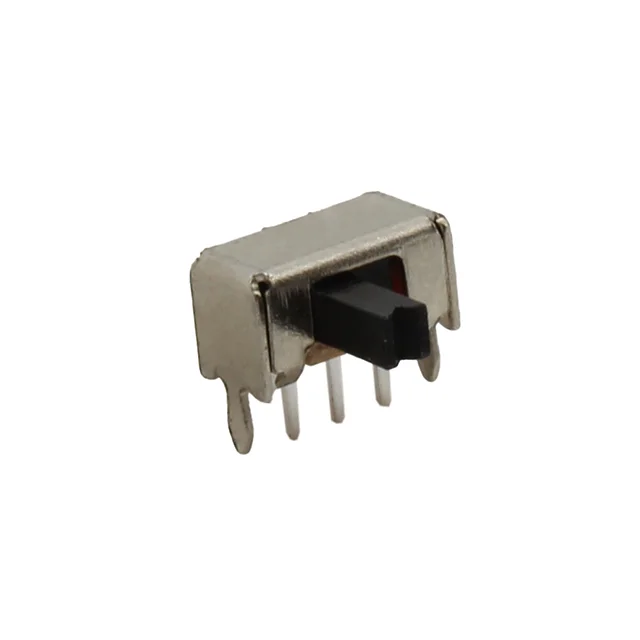

MS1247 Series

SPDT, Right Angle and miniature in size, the MS1247 Series slide switch is through-hole termination with multiple actuator length options and steel housing.

Features

Right Angle, Sub-Miniature Size, Multiple Actuator Lengths, Steel Housing

Datasheet in PDF

Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

SPDT

Latching Option

Multiple

Terminal Options

PC Pin

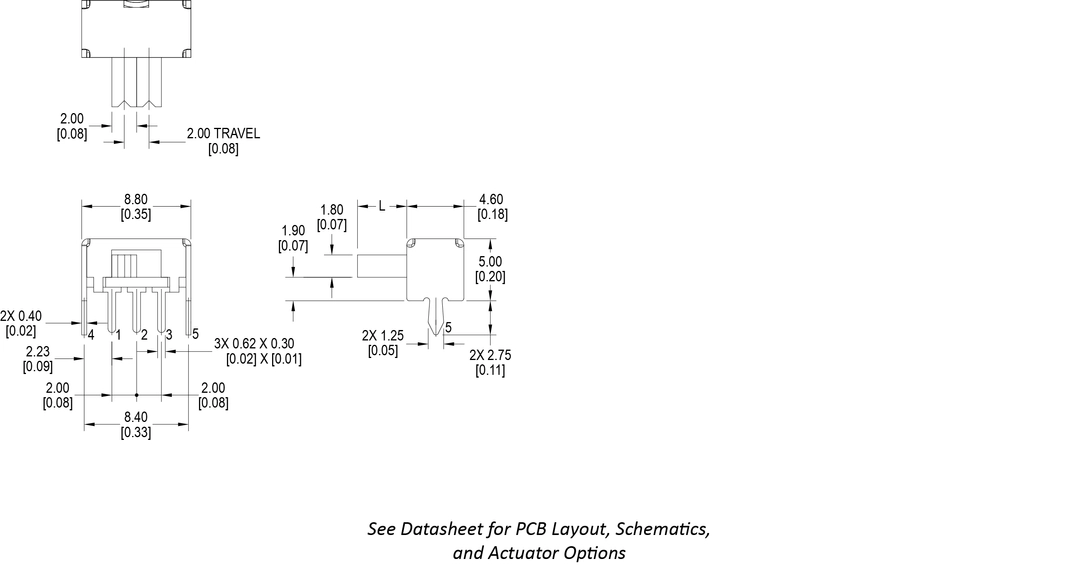

Dimensional Drawing
