MS1206

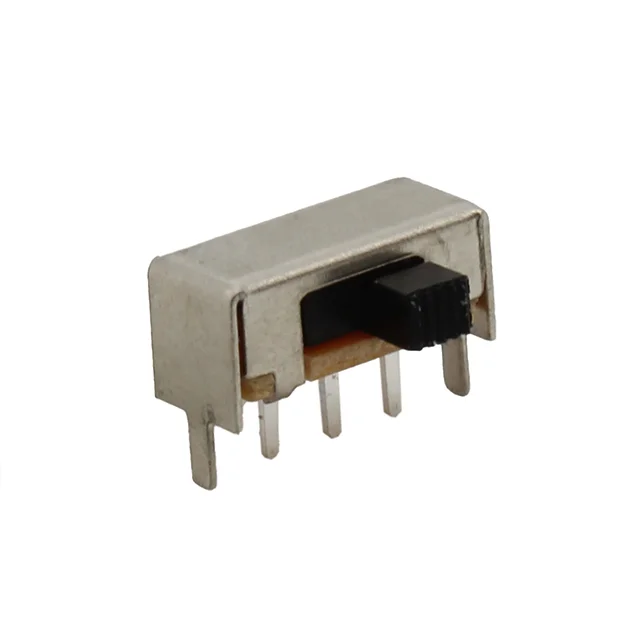

MS1206 Series

Right Angle and sub-miniature in size, the SPDT, through-hole MS1206 Slide switch offers steel housing materials with actuator length choices from 3.0mm to 6.0mm.

Features

Right Angle, Sub-Miniature Size, Multiple Actuator Lengths, Steel Housing

Datasheet in PDF

Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

SPDT

Latching Option

Multiple

Terminal Options

PC Pin

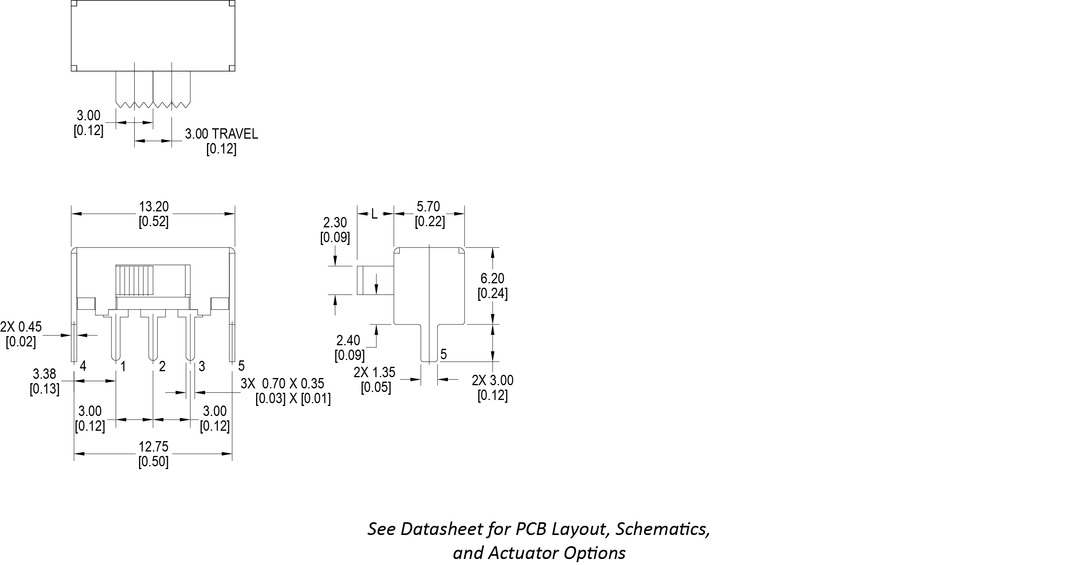

Dimensional Drawing
