MS1202

MS1202 Series

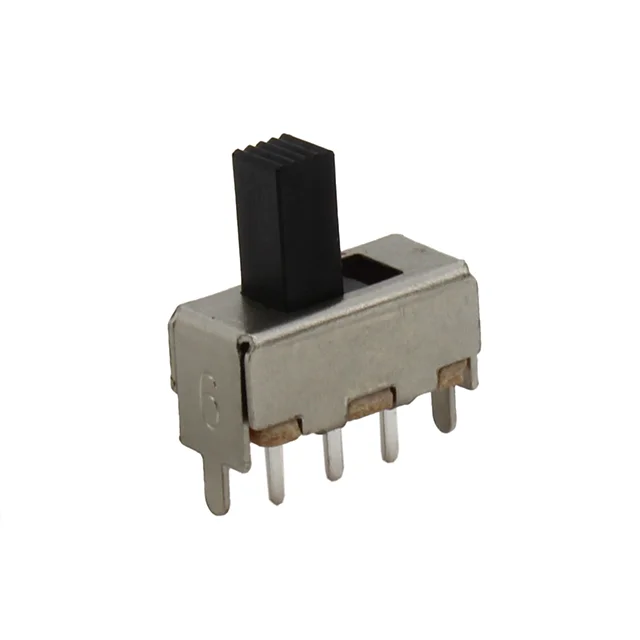

Sub-miniature in size, the SPDT MS1202 is through-hole panel mount with actuator length choices of 4.0mm or 6.0mm. The MS1202 offers steel housing materials.

Features

Sub-Miniature Size, Multiple Actuator Lengths, Steel Housing

Datasheet in PDF

Specification

Electrical Ratings

200mA@30VDC

Number Of Poles

SPDT

Latching Option

Multiple

Terminal Options

PC Pin

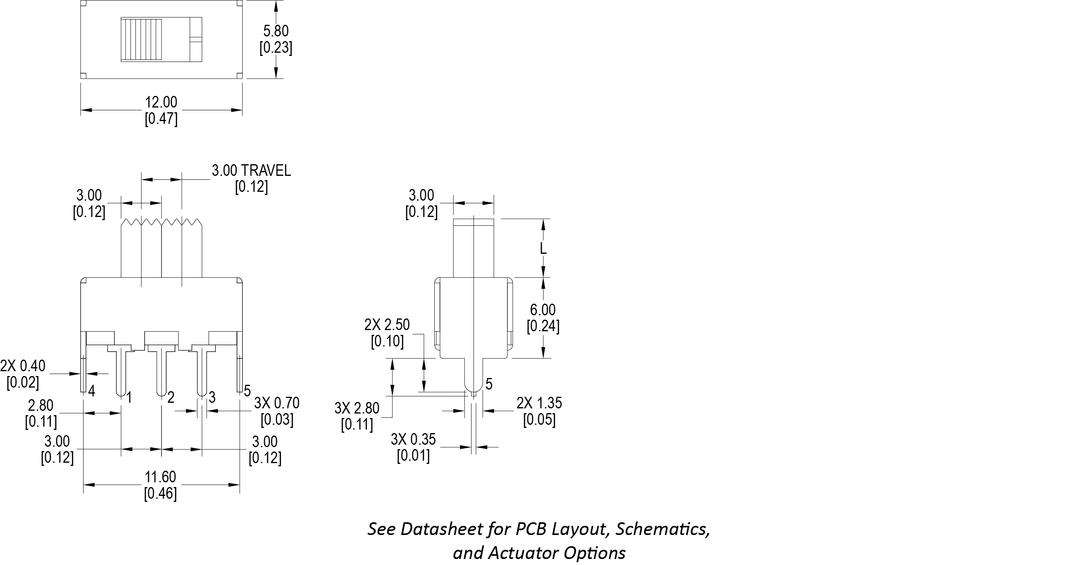

Dimensional Drawing
