LP4203 Series

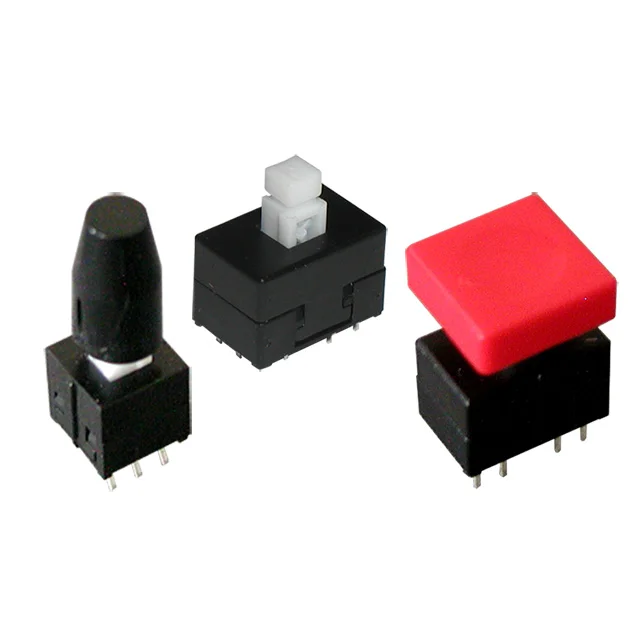

Miniature in size, the LP4203 pushbutton switch is DPDT with momentary function. Actuation force is 260gF with actuator travel of 1.5mm to lock and 2.5mm full travel. The LP4203 offers several actuator size and color options. Termination is straight PC pin.
Features
Miniature Size, Non-Latching, Actuator Size Options, Straight Pin Termination, Multiple Cap Options
Specification
Electrical Ratings
100mA@30VDC
Number Of Poles
DPDT
Latching Option
Momentary
Terminal Options
PC Pin Straight

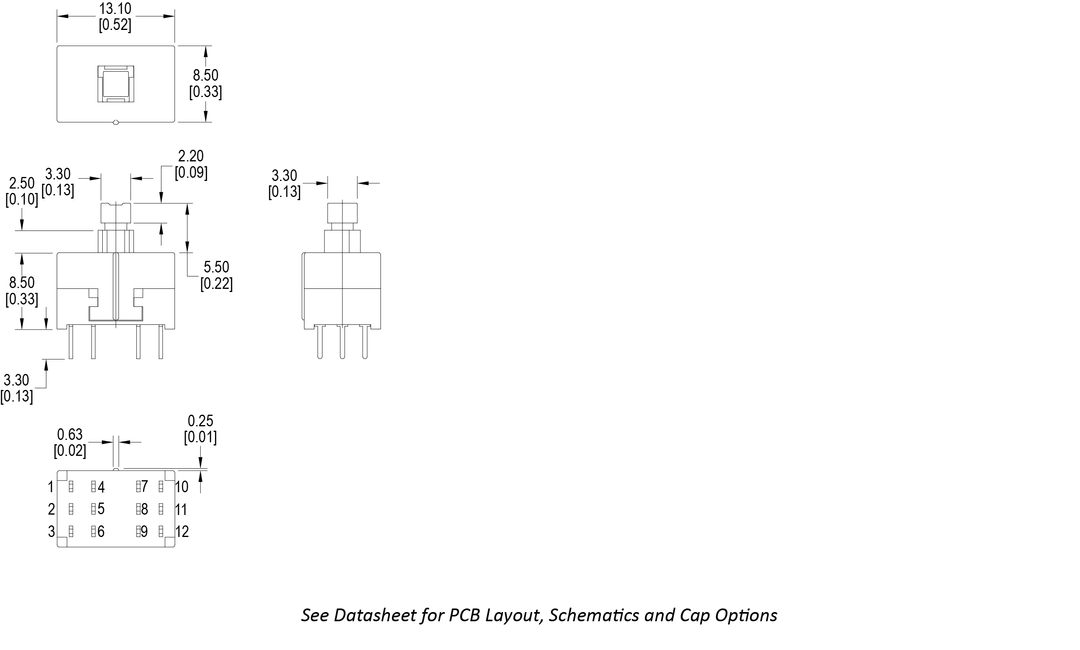

Dimensional Drawing
