LP2283 Series

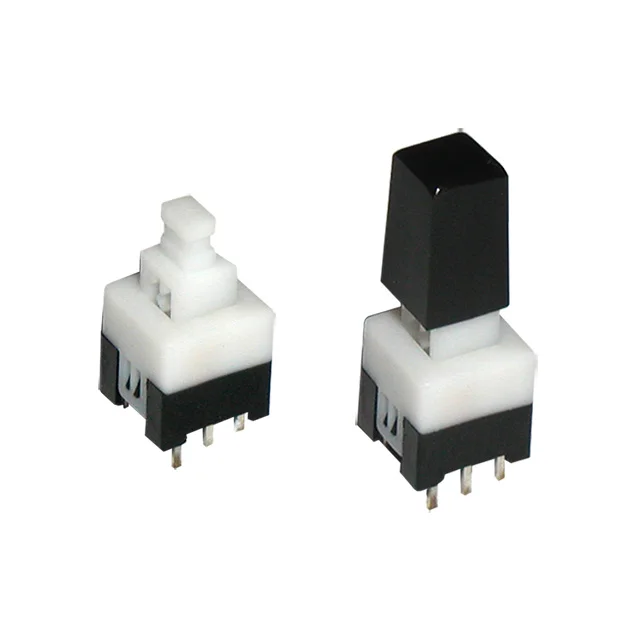

Miniature in size, the LP2283 pushbutton switch is DPDT with momentary or latching choice. Actuation force is 140gF. Cap options offer color choices include white, black, red, light gray and custom colors.
Features
Miniature Size, Latching or Non-Latching Option, Multiple Cap Options
Specification
Electrical Ratings
100mA@30VDC
Number Of Poles
DPDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin

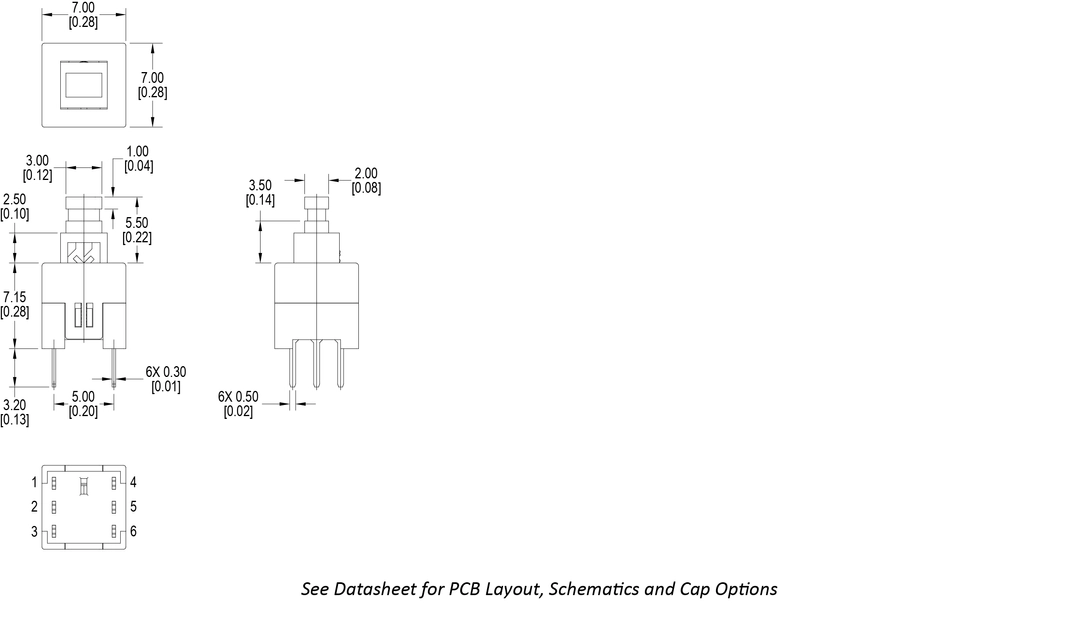

Dimensional Drawing
