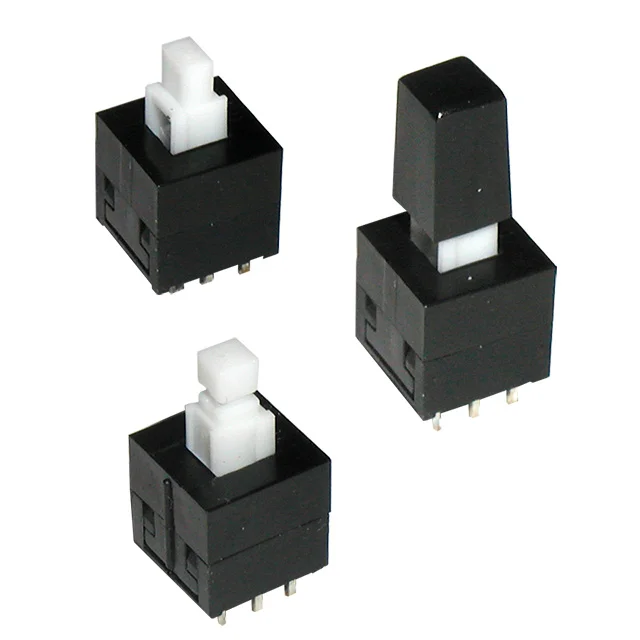

LP2203 Series
Miniature in size, the LP2203 pushbutton switch is DPDT with momentary or latching choice. Choose from straight or bent PC pin termination and actuator size ranging from 2.0mm up to 3.3mm square head. Actuation force is 180gF. Cap options offer color choices of white, black, red, light gray, dark gray, blue, clear and custom colors.
Features
Miniature Size, Latching or Non-Latching Option, Actuator Size Options, Straight or Bent PC Pin Termination, Multiple Cap Options
Specification
Electrical Ratings
100mA@30VDC
Number Of Poles
DPDT
Latching Option
Momentary, Latching
Terminal Options
PC Pin

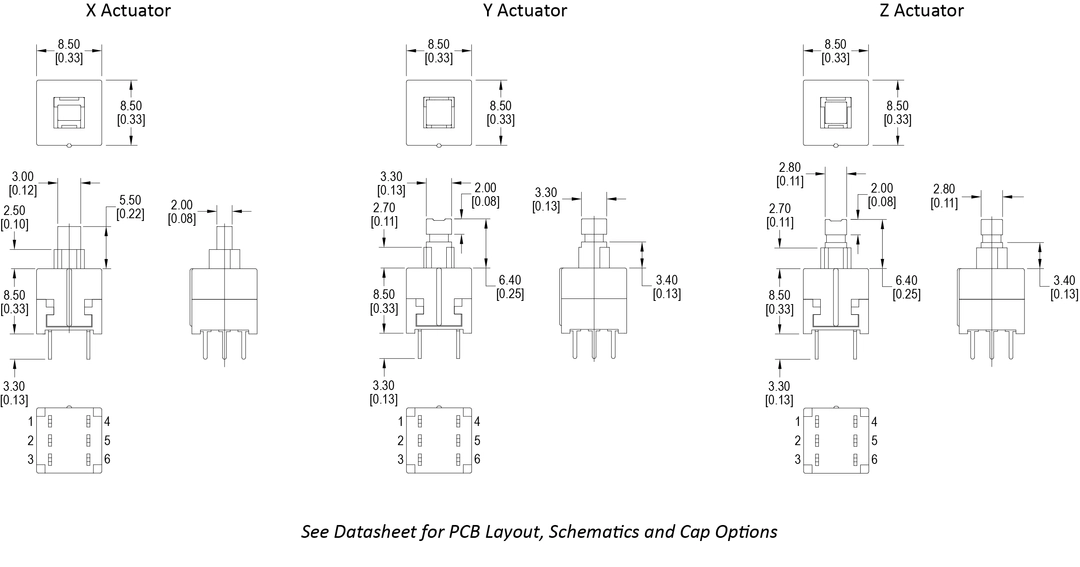

Dimensional Drawing
