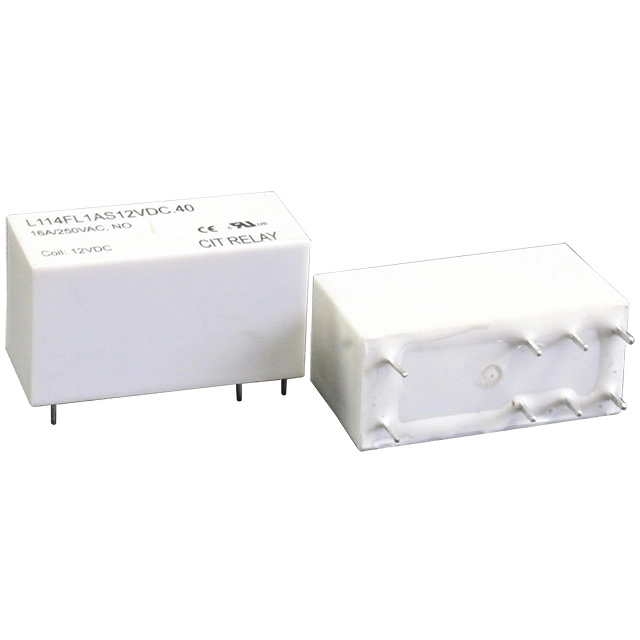

L114FL Series
With switching capacity up to 16A, the low profile latching L114FL Series relay offers PC pin mounting. Strong resistance to shock and vibration, the L114FL Series is designed to withstand heavy contact load. Available with single or double coil latching function, contact arrangement options are 1A or 1C. Coil voltage ranges from 3VDC up to 24VDC with coil power of .40W or .60W. Dimensions are 29.0 x 12.7 x 15.7mm. UL Agency approval is E197851.
Features
Single Coil or Double Coil Latching, Creepage Distrance of 8.4mm, Heavy Contact Load, Strong Resistance to Shock and Vibration, UL/cUL Certified
Specification
Contact Rating
NO and NC: 16A@250VAC Resistive
Contact Forms
1A, 1C
Coil Voltage
5VDC, 9VDC, 12VDC, 24VDC
Coil Power
.40W, .60W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

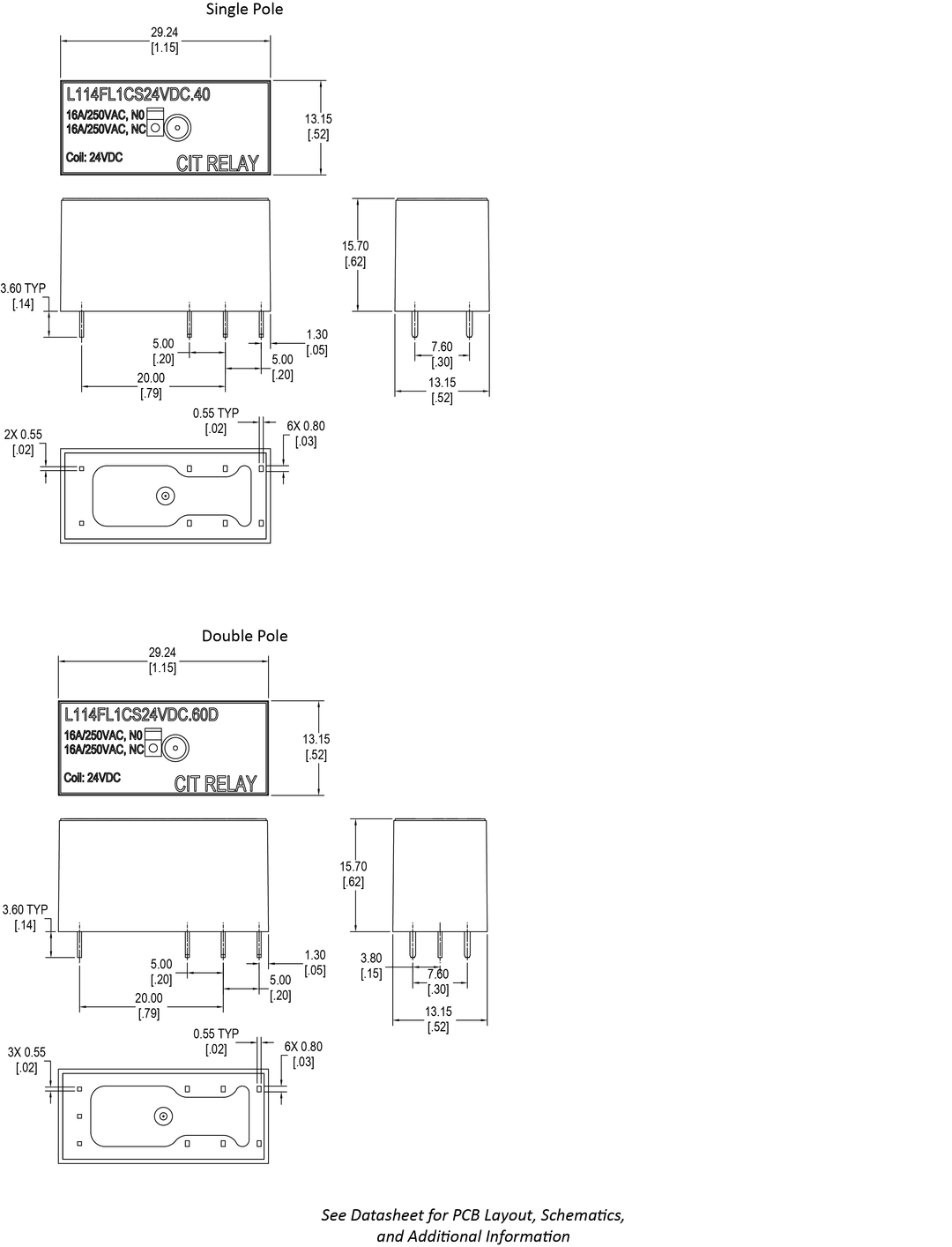

Dimensional Drawing
