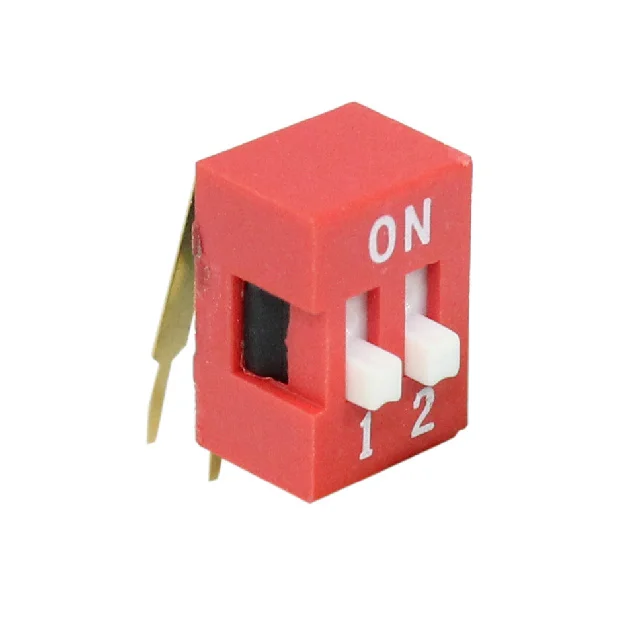

KR Series
The KR Series is a right-angle DIP switch with extended or recessed actuator options. Positions range from 02 to 12. This through-hole switch offers gold over nickel plated phosphor bronze contacts and terminals. Packaging is tube style.
Features
Up to 12 Positions, Right Angle, Extended or Recessed Actuator Option, Top Tape Seal Option
Specification
Electrical Ratings
Switch: 25mA@24VDC; Carry: 100mA@24VDC
Number Of Poles
DPST~12PST
Latching Option
Multiple
Terminal Options
Right Angle

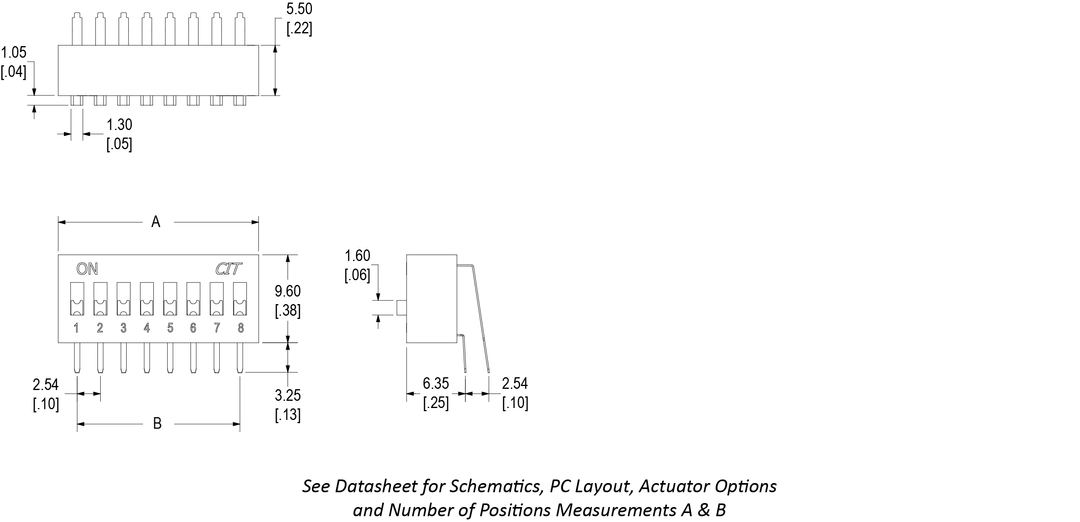

Dimensional Drawing
