KN Series

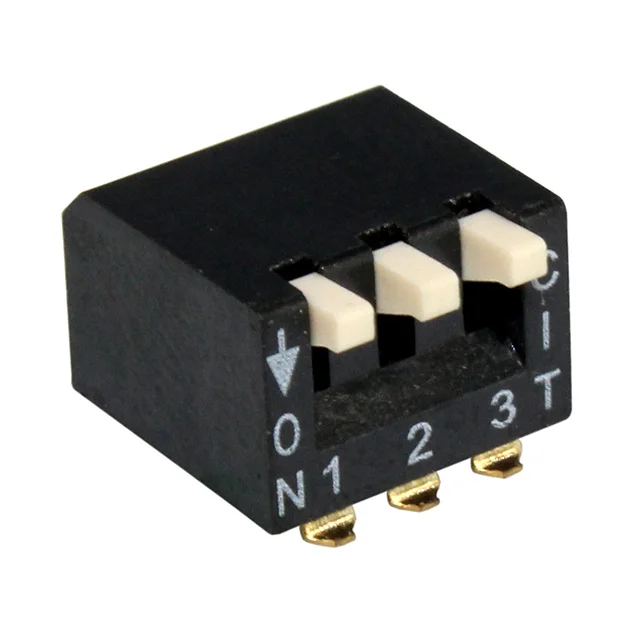

The KN Series DIP switch offers a surface mount, .100 pitch low profile. Available with the option of extended or recess actuators, the KN Series positions range from 01 to 12. Contact materials are gold over nickel plated phosphor bronze and terminal materials are gold over nickel plated brass. Top-tape seal is offered with tube packaging.
Features
Up to 12 Positions, Piano Style, .100 Pitch, Surface Mount, Extended or Recessed Actuator Option, Top Tape Seal Option, Tube or Tape & Reel Packaging
Specification
Electrical Ratings
Switch: 25mA@24VDC; Carry: 100mA@24VDC
Number Of Poles
DPST~12PST
Latching Option
Multiple
Terminal Options
Gull Wing
Dimensional Drawing
