J850 Series

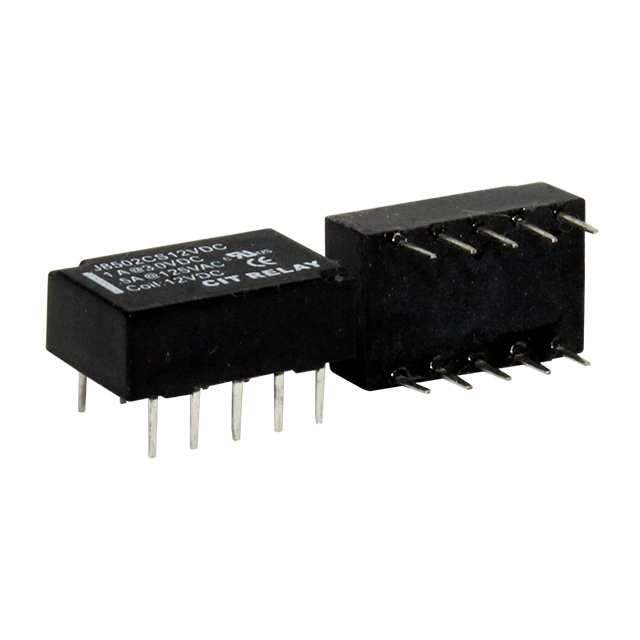

The J850 Series relay is an ultra-low profile, monostable relay. The contact arrangement is 2C with coil voltage ranging from 3VDC up to 24VDC and coil power of .14W or .20W. Dimensions are 14.0 x 9.0 x 4.9mm. UL Agency approval is E197851.
Features
Monostable, Conforms to FCC Part 68, Ultra Low Profile, UL/cUL Certified
Specification
Contact Rating
1A@30VDC Resistive, .5A@125VAC Resistive
Contact Forms
2C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC
Coil Power
.14W, .20W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

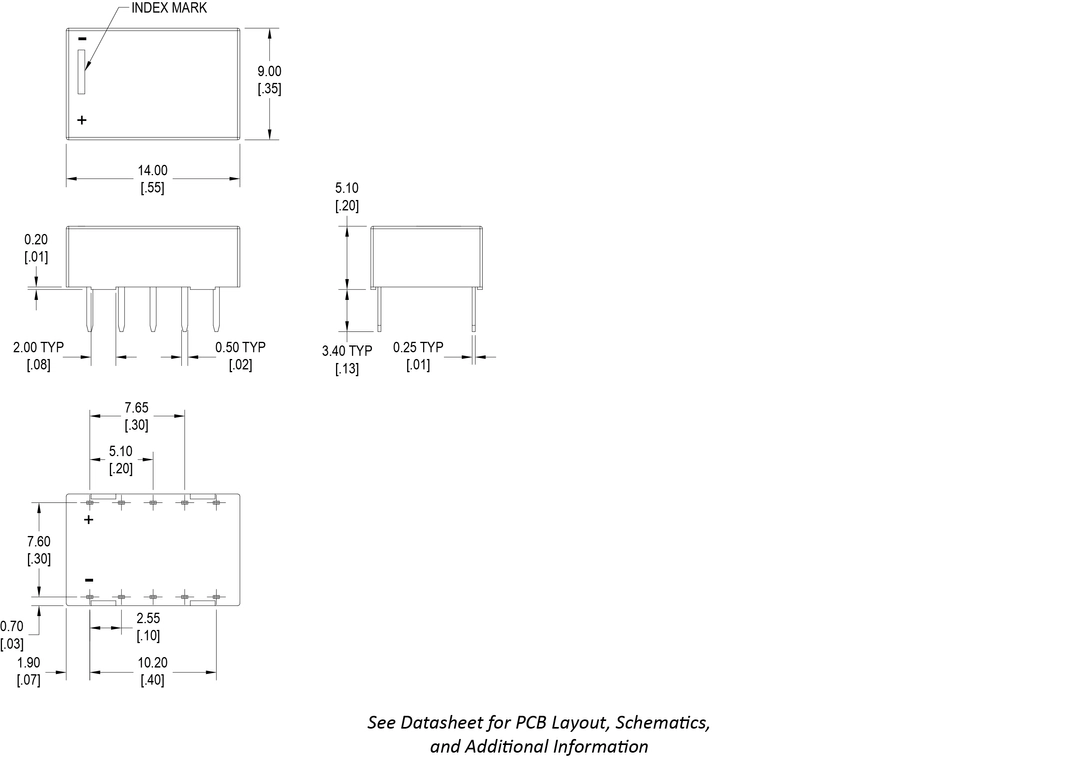

Dimensional Drawing
