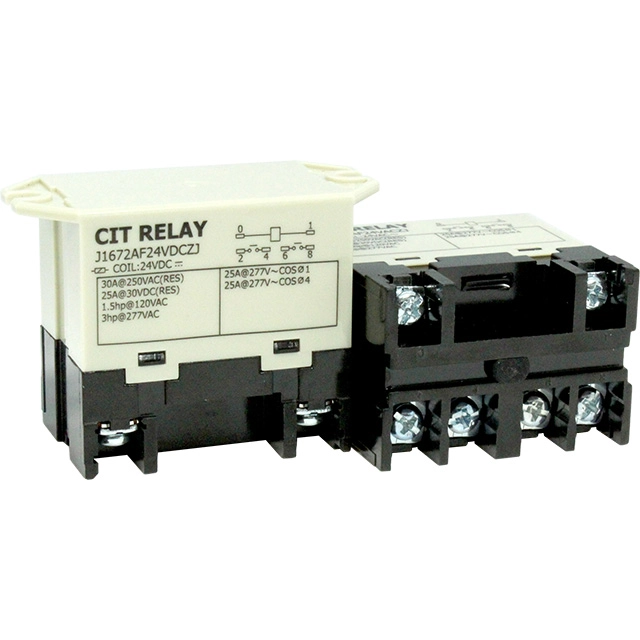

J167 Series
The J152 Series is high capacity relay with switching capacity up to 30A. With a wide range of coil voltage options, the J167 Series has strong resistance to shock and vibration. Contact arrangements include 1A and 2A. Coil voltage ranges from 6VDC up to 400VAC with DC coil power of 1.90W and AC coil power of 1.5VA. The J167 offers PC pin, solder lug, or screw terminal mounting options. Dimensions are 68.5 x 33.5 x 49.0. UL/cUL and TUV certified.
Features
High Capacity GeneralPurpose, 1A and 2A Contact Options, Wide Range of Coil Options, UL/cUL and TUV Certified
Specification
Contact Rating
UL: 25A@30VDC Resistive, 30A@277VAC Resistive, plus more; TUV: 25A@277VAC Resistive and Inductive
Contact Forms
1A, 2A
Coil Voltage
6VDC, 12VDC, 24VDC, 48VDC, 110VDC, 220VDC, 6VAC, 12VAC, 24VAC, 48VAC, 100~120VAC, 200~240VAC, 380VAC
Coil Power
DC: 1.9W; AC: 2.5VA
Mounting Methods
PC Pin, Solder Lug, Screw Terminals
Agency Approvals
UL E197851

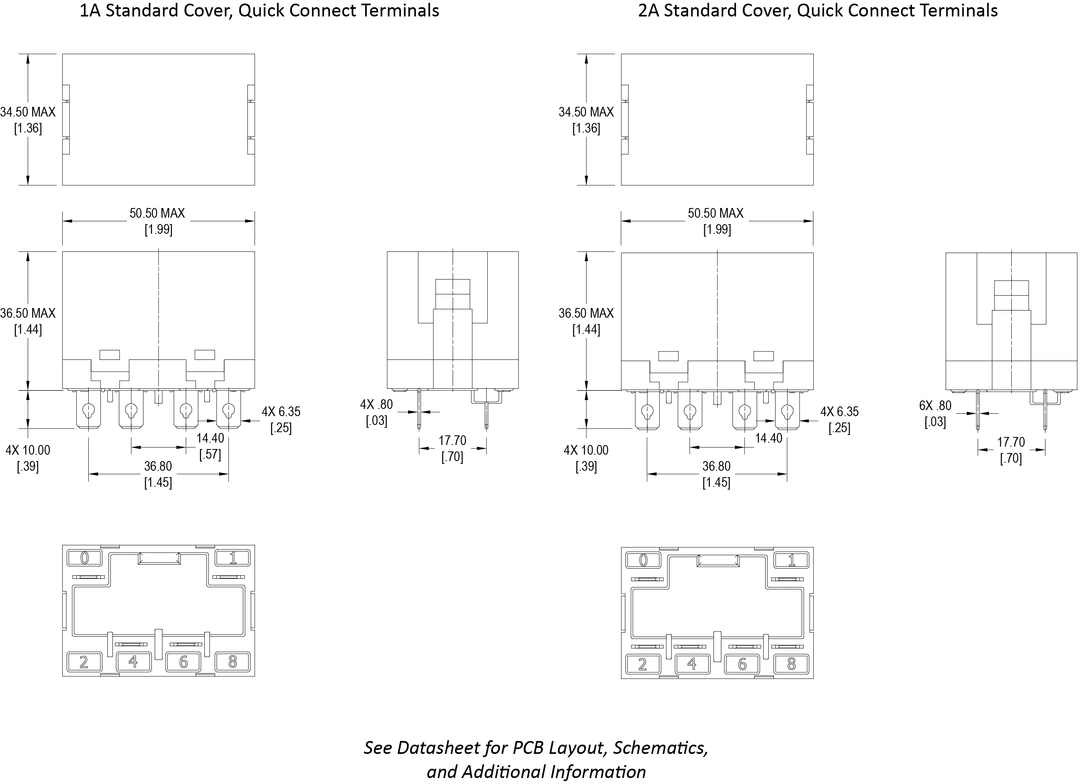

Dimensional Drawing
