J152 Series

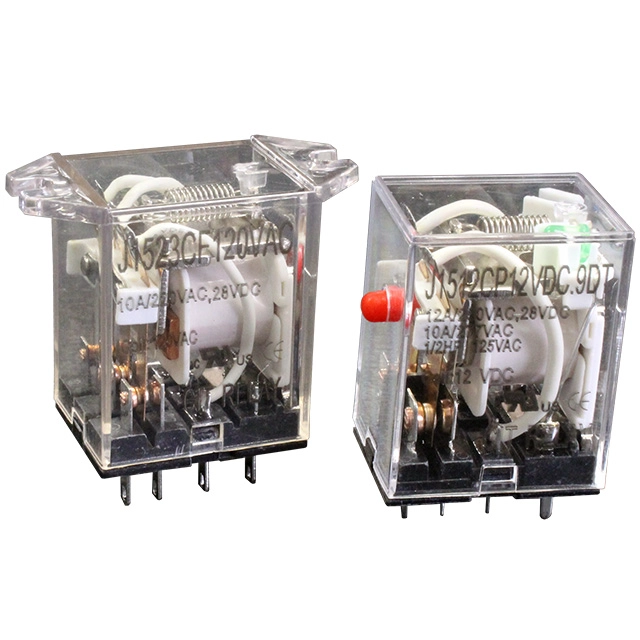

The J152 Series is an ice cube style relay with switching capacity up to 10A. With low coil power consumption and high contact load, the J152 Series has strong resistance to shock and vibration. Contact arrangements include 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 220VAC with DC coil power of .90W and AC coil power of 1.2VA. The J152 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197851.
Features
Switching Capacity up to 10A, Low Coil Power Consumption, High Contact Load, Strong Resistance to Shock and Vibration
Specification
Contact Rating
UL: 2 and 3 Pole 10A@220VAC and 28VDC General Purpose, 4 Pole 5A@220VAC and 28VDC General Purpose; TUV: 2 Pole 5A@220VAC and 28VDC
Contact Forms
2C, 3C, 4C
Coil Voltage
12VDC, 24VDC, 110VDC, 12VAC, 24VAC, 110VAC, 120VAC, 220VAC
Coil Power
DC: .90W; AC 1.2VA
Mounting Methods
PC Pin, Solder Lug
Agency Approvals
UL E197851
Dimensional Drawing
