J151 Series

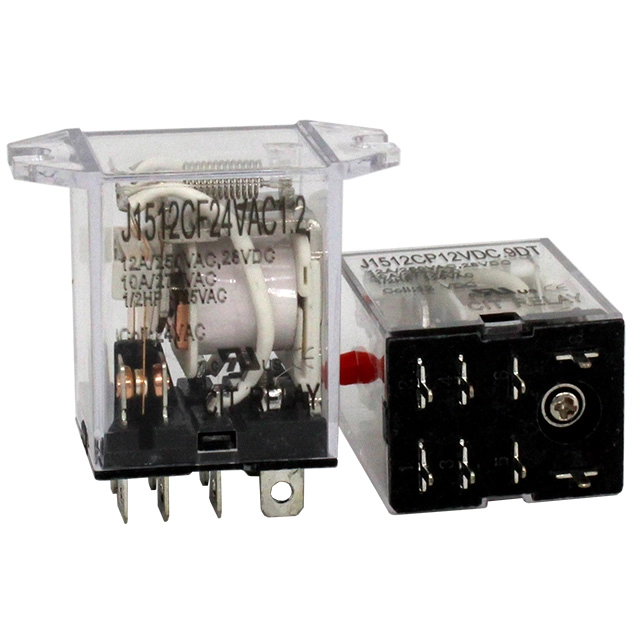

The J151 Series is an ice cube style relay with switching capacity up to 20A. With low coil power consumption and high contact load, the J151 Series has strong resistance to shock and vibration. Contact arrangements include 1A, 2A, 3A, 4A, 1B, 2B, 3B, 4B, 1C, 2C, 3C, and 4C. Coil voltage ranges from 12VDC up to 240VAC with DC coil power options of .90W, 1.4W or 1.5W and AC coil power options of 1.2VA, 2.0VA or 2.5VA. The J151 offers PC pin or solder lug mounting options. Dimensions are dependent upon style choice with a flange option. UL Agency approval is E197852.
Features
Switching Capacity up to 20A, Low Coil Power Consumption, High Contact Load, Strong Resistance to Shock and Vibration
Specification
Contact Rating
1 Pole: 20A@277VAC and 28VDC General Purpose; 2 Pole: 12A@250VAC and 28VDC General Purpose, 10A@277VAC General Purpose, 1/2hp@125VAC
Contact Forms
1A, 2A, 1B, 2B, 1C, 2C
Coil Voltage
12VDC, 24VDC, 36VDC, 48VDC, 110VDC, 220VDC, 12VAC, 24VAC, 36VAC, 48VAC, 110VAC, 120VAC, 220VAC, 240VAC
Coil Power
DC: .9W; AC: 1.2VA
Mounting Methods
PC Pin, Solder Lug
Agency Approvals
UL E197852

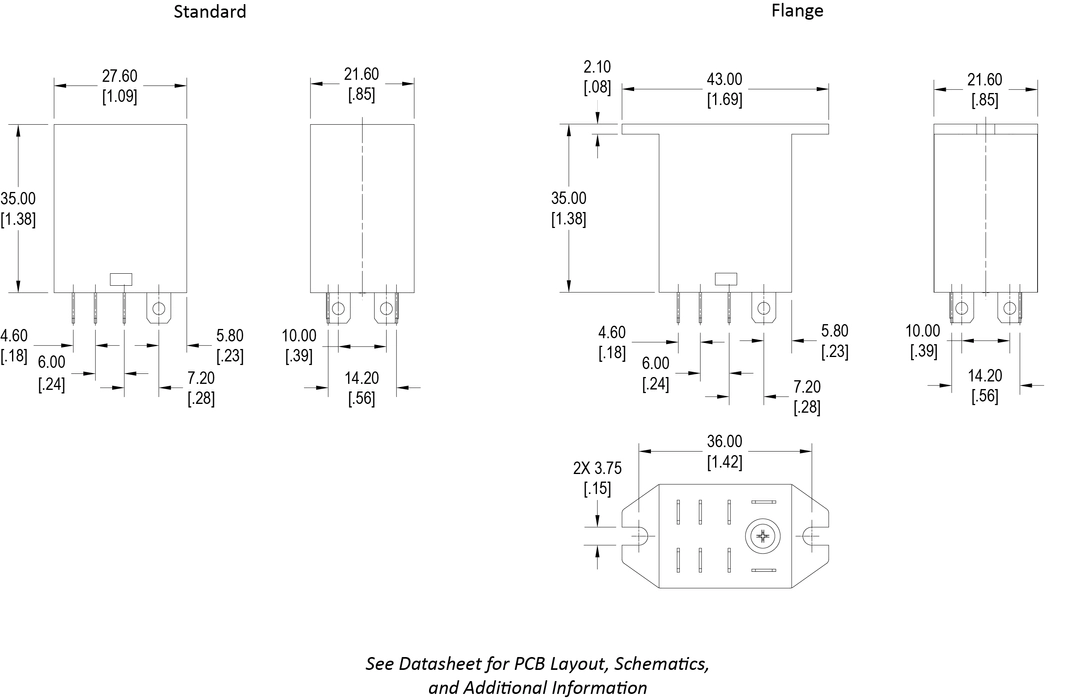

Dimensional Drawing
