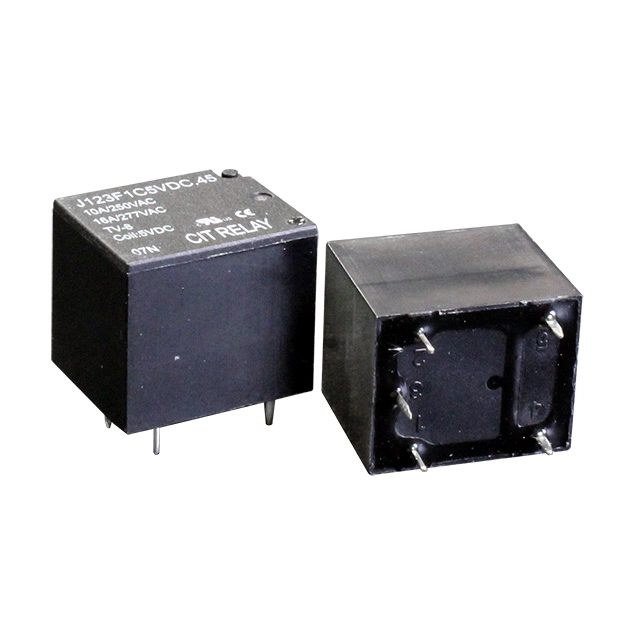

J123F Series
Designed to withstand high in-rush and rated up to 20A, the J123F Series relay is light-weight and small in size. Capable of handling 1000W lamp loads, the J123F offers contact arrangement or 1A or 1C. Coil voltage ranges from 5VDC up to 48VDC with coil power of .36W or .45W. Dimensions are 19.5 x 16.1 x 17.1mm. UL Agency approval is E197852.
Features
F Class Insulation Standard, Light Weight and Small Size, Capable of Handling 1000W Lamp Loads, Designed to Withstand High In-Rush
Specification
Contact Rating
UL: 20A@125VAC, 16A@277VAC, 10A@250VAC General Purpose, TV-8@120VAC, 1hp@125/250 NO, 1/2hp@125/250 NC; TUV: 15A@250VAC NO Resistive
Contact Forms
1A, 1C
Coil Voltage
5VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.36W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197852

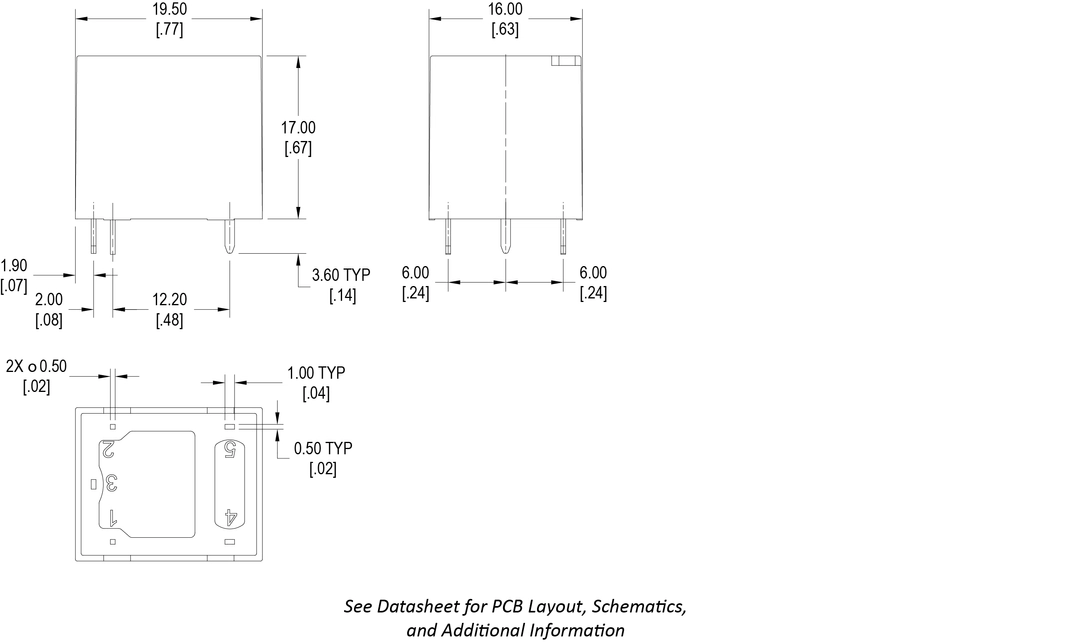

Dimensional Drawing
