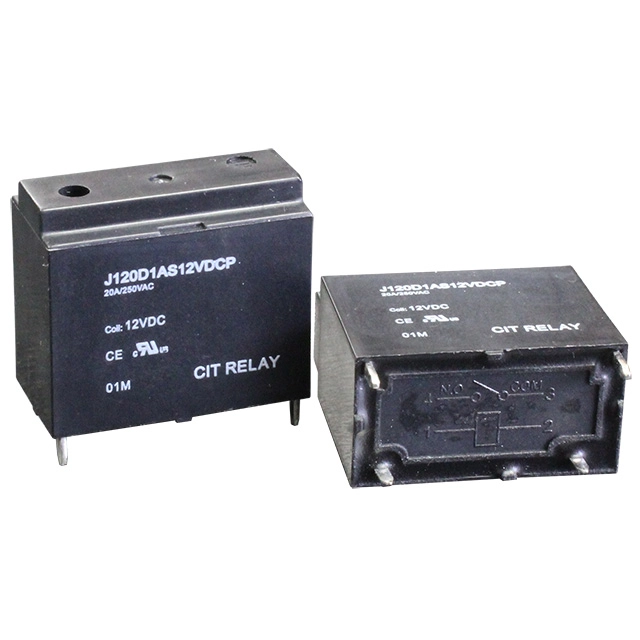

J120D Series
With switching capacity up to 20A, the J120D Series offers PC pin or quick connect terminals. Strong resistance to shock and vibration, the J120D is designed to withstand high in-rush. Ideal for use in household applications, contact arrangement is 1A with coil voltage ranging from 5VDC up to 48VDC with coil power of .90W. Dimensions are 30.0 x 15.5 x 23.3 (33.0)mm. UL Agency approval is E197851.
Features
Switching Capacity up to 20A, PC Pins and Quick Connect Terminals, Stron Resistance to Shock and Vibration, Designed to Withstand High Inrush, Uses Include Household Appliances
Specification
Contact Rating
25A@250VAC General Purpose, 2hp@277VAC
Contact Forms
1A
Coil Voltage
5VDC, 6VDC, 12VDC, 24VDC, 48VDC
Coil Power
.9W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

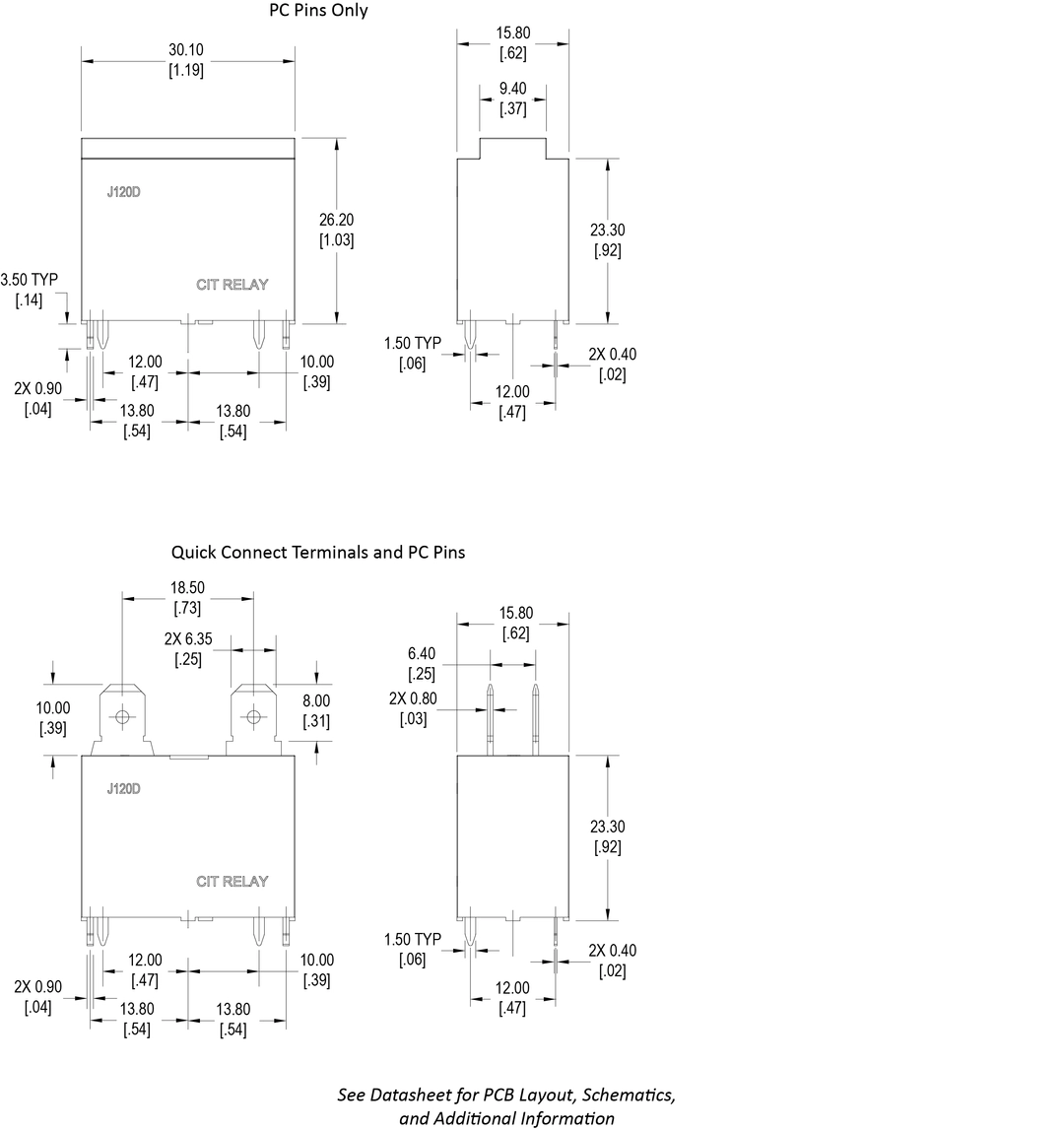

Dimensional Drawing
