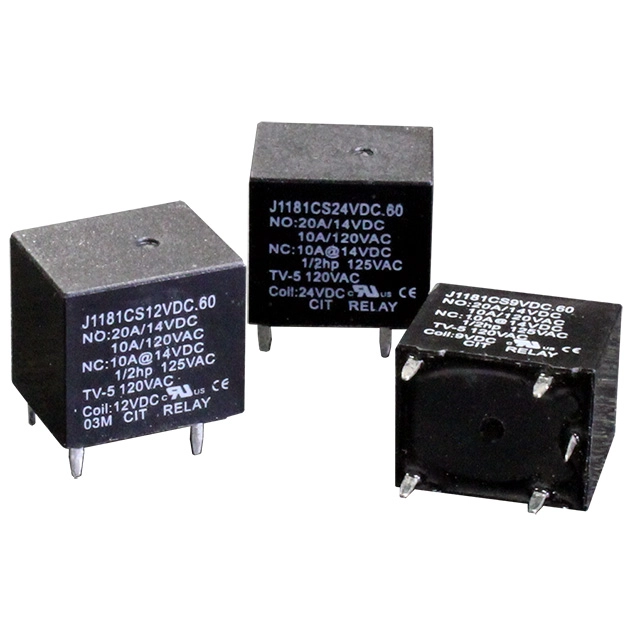

J118 Series
The J118 Series relay is small in size with PC pin mounting. Contact arrangement options are 1A, 1B, or 1C with coil voltage from 9VDC up to 24VDC and coil power options of .60W or .80W. Dimensions are 15.5 x 12.2 x 13.8mm. UL Agency approval is E197852.
Features
Low Coil Power Consumption, Light Weight and Small Size, PC Board Mounting, Wide Range of Applications
Specification
Contact Rating
NO: 10A@120VAC Resistive, 20A@14VDC Resistive; NC: 10A@14VDC Resistive, 1/2hp@125VAC, TV-5@120VAC
Contact Forms
1A, 1B, 1C
Coil Voltage
9VDC, 12VDC, 24VDC
Coil Power
.60W, .80W
Mounting Methods
PC Pin
Agency Approvals
UL E197852

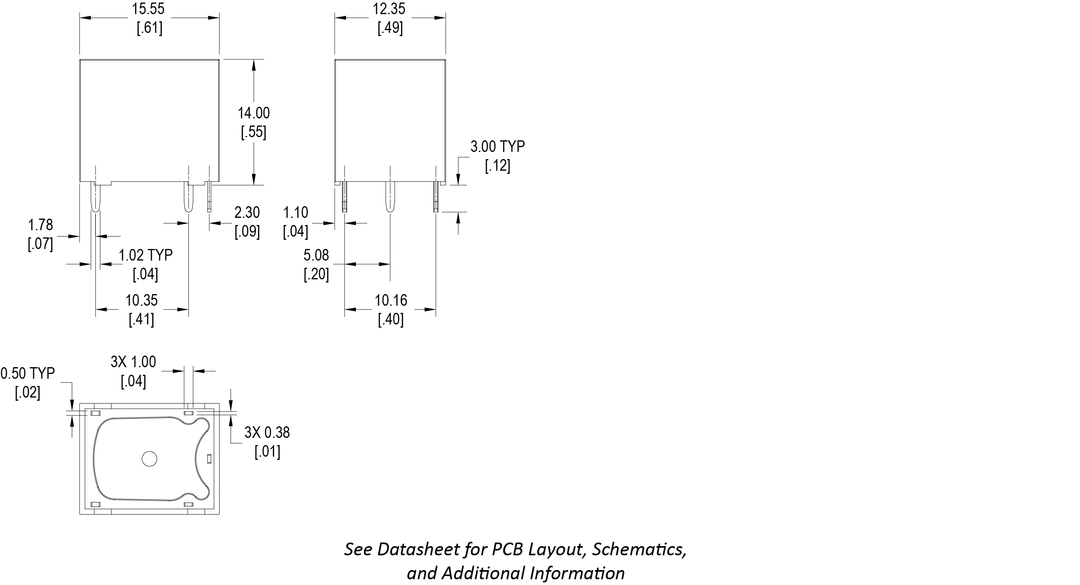

Dimensional Drawing
