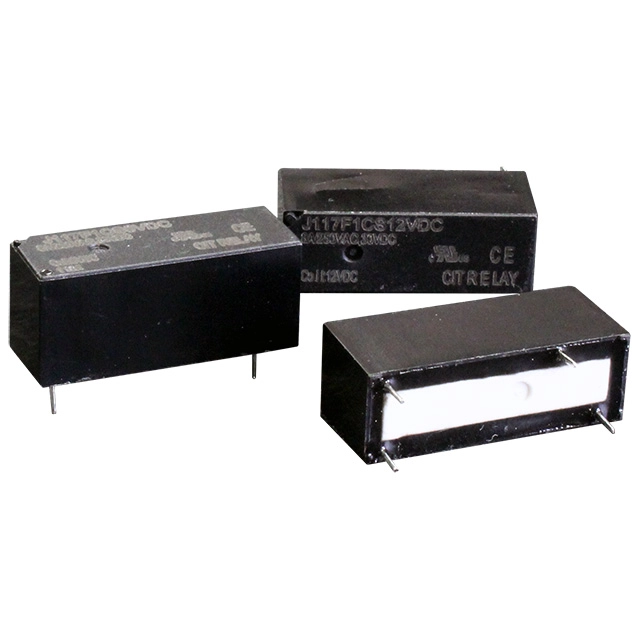

J117F Series
Narrow in width and low profile, the J117 Series offers high dielectric strength with F class insulation standard. Contact arrangement options are 1A or 1C with coil voltage from 5VDC to 24VDC. Coil power is .22W. PC pin mounting, the J117 Series is 28.5 x 10.1 x 12.3mm in size. UL Agency approval is E197851.
Features
F Class Insulation Standard, Low Profile and Narrow Width, High Dielectric Strength, Less Thank 8mm Creepage between Coil and Contact
Specification
Contact Rating
8A@250VAC, 8A@30VDC
Contact Forms
1A, 1C
Coil Voltage
5VDC, 12VDC, 24VDC
Coil Power
.22W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

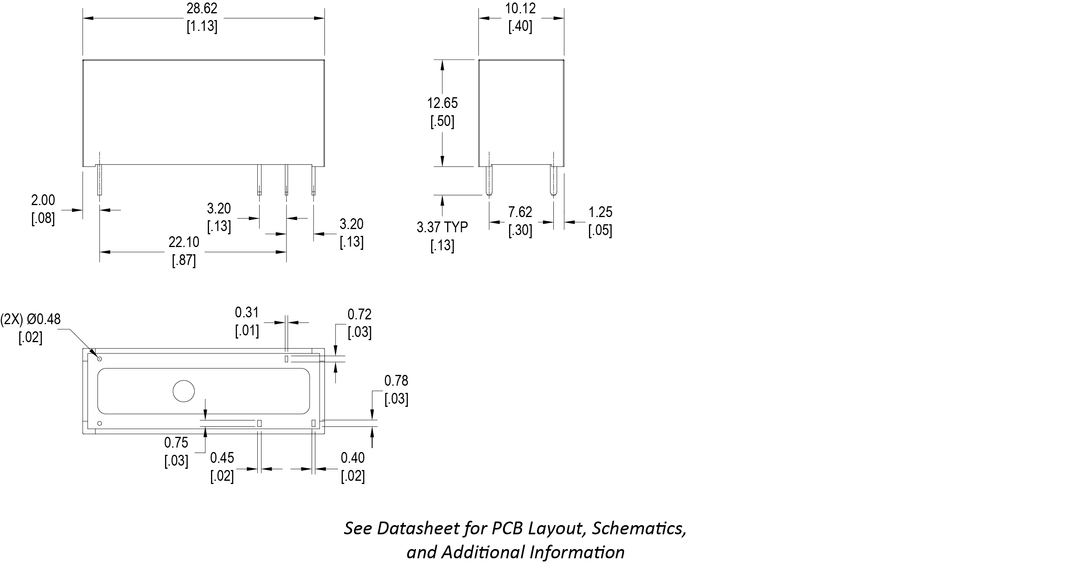

Dimensional Drawing
