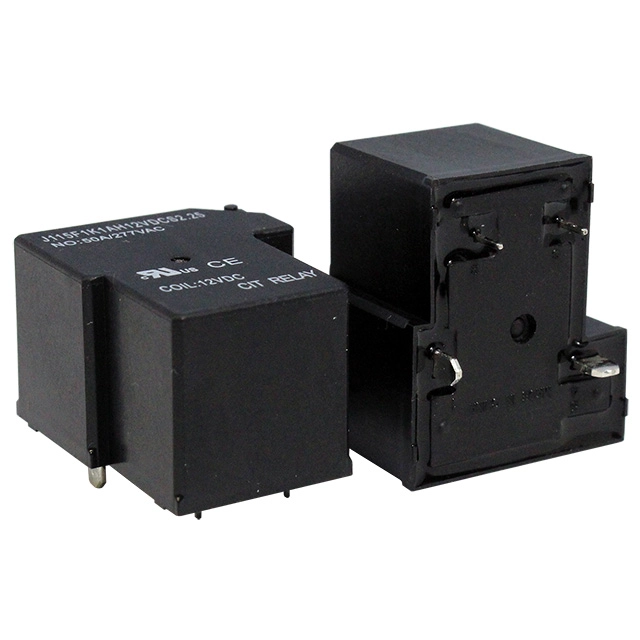

J115F1K Series
Offering wide contact terminals for better heat transfer, the J115F1K Series relay offers heavy contact load up to 60A in a light-weight and small size package. This PC pin mounted relay offers 1A or 1C contact arrangement with coil voltage ranging of 12VDC or 24VDC with DC coil power of 1.2W or 2.25W. Dimensions are 31.7 x 26.9 x 20.3mm. Agency approval is UL E197852.
Features
60A Max Switching Current, 1.8mm Contact Gap or 1.1mm Standard Contact Gap Option, Wide Contact Terminals for Better Heat Transfer, UL/cUL Recognized
Specification
Contact Rating
1.8mm Contact Gap : 35A @ 250/277VAC Resistive; Standard Contact Gap : 60A @ 250/277VAC General Purpose and Resistive, 35A @ 250/277VAC General Purpose and Resistive
Contact Forms
1A, 1C
Coil Voltage
12VDC, 24VDC
Coil Power
1.2W, 2.25W
Mounting Methods
PC Pin
Agency Approvals
UL E197852

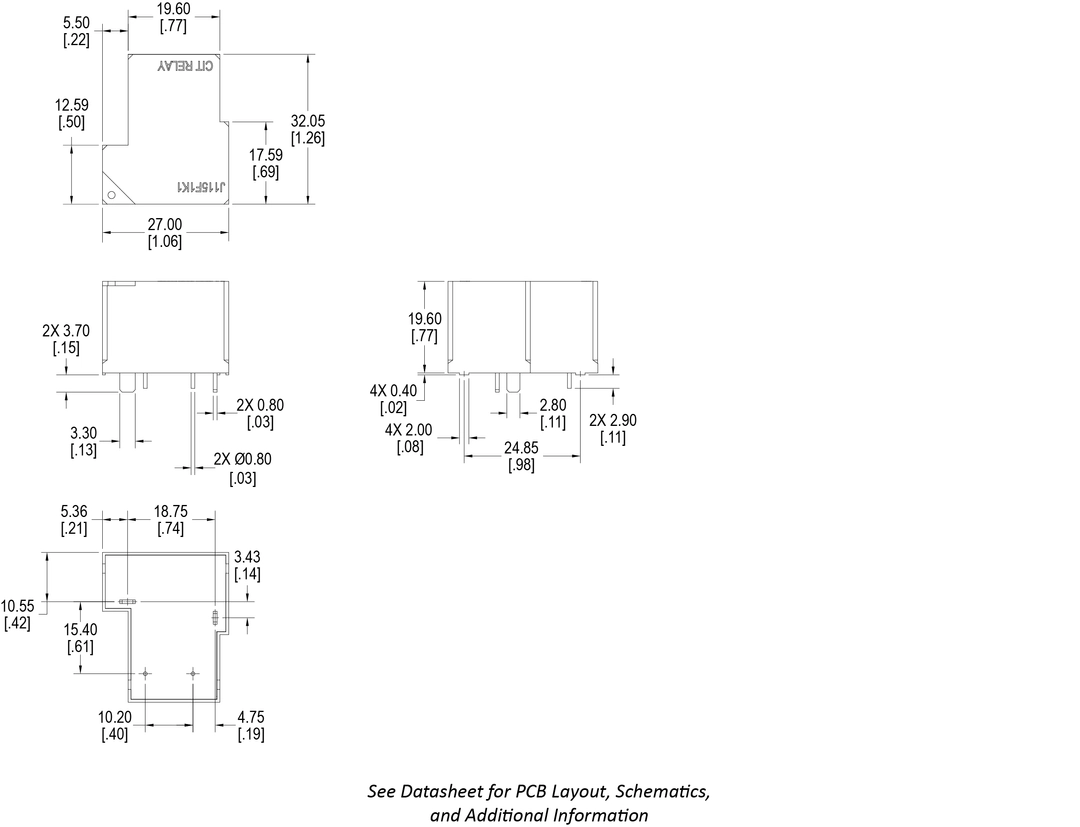

Dimensional Drawing
