J114FL Series

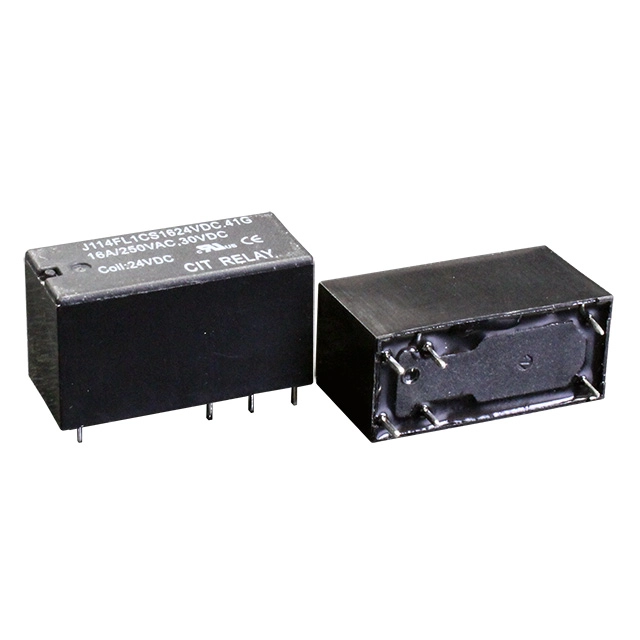

With switching capacity up to 16A, the low profile J114FL Series relay offers F Class insulation standard with PC pin mounting. Contact arrangement options are 1A, 1C, 2A or 2C. Coil voltage ranges from 5VDC up to 48VDC with coil power of .41W or .53W. Dimensions are 29.0 x 12.6 x 15.70mm. UL Agency approval is E197851.
Features
Switching Capacity up to 16A, Low Profile, F Class Insulation Standard, UL/cUL Certified
Specification
Contact Rating
12A Contact Single Pole .41W Coil Power: NO and NC 12A@250VAC/30VDC Resistive; 16A Contact Single Pole .41W Coil Power: NO 16A@250VAC/30VDC Resistive, 16A@277VAC Resistive, NC 16A@250VAC/30VDC Resistive; 8A Contact Single Pole .41W Coil Power: NO and NC 8A@277VAC/30VDC Resistive; 10A Contact Single Pole .53W Coil Power: NO 10A@250VAC Resistive, 10A@30VDC Resistive
Contact Forms
1A, 1C, 2A, 2C
Coil Voltage
5VDC, 6VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.41W, .53W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

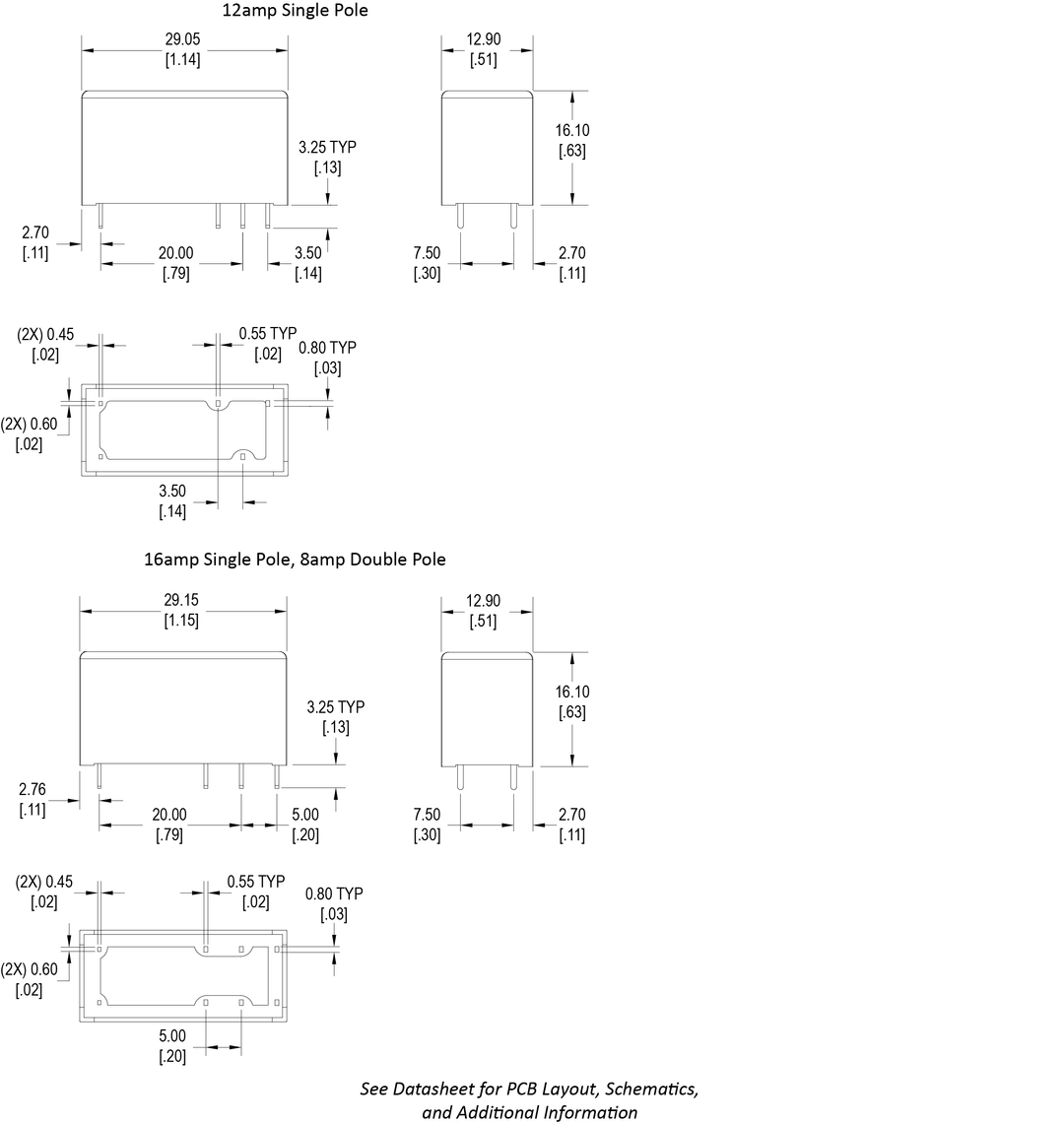

Dimensional Drawing
