J114AF Series

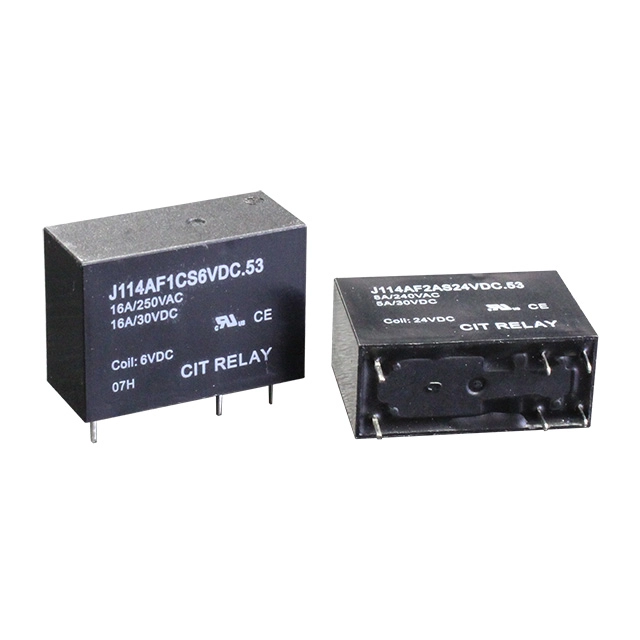

With switching capacity up to 16A, the J114AF Series relay offers F Class insulation standard with PC pin mounting. Contact arrangement options are 1A, 1C, 2A or 2C. Coil voltage ranges from 3VDC up to 48VDC with coil power options of .53W or .72W. Dimensions are 29.0 x 12.7 x 20.0mm. UL Agency approval is E197851.
Features
Switching Capacity up to 16A, 20mm Height, PC Board Mounting, F Class Insulation Standard, UL/cUL Certified
Specification
Contact Rating
1A and 1C: 16A@250VAC and 30VDC Resistive 70C; 1AH and 1CH: 16A@240VAC and 30VDC Resistive; 2A and 2C: 8A@250VAC Resistive, 5A@30VDC Resistive
Contact Forms
1A, 1C, 2A, 2C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.53W, .72W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

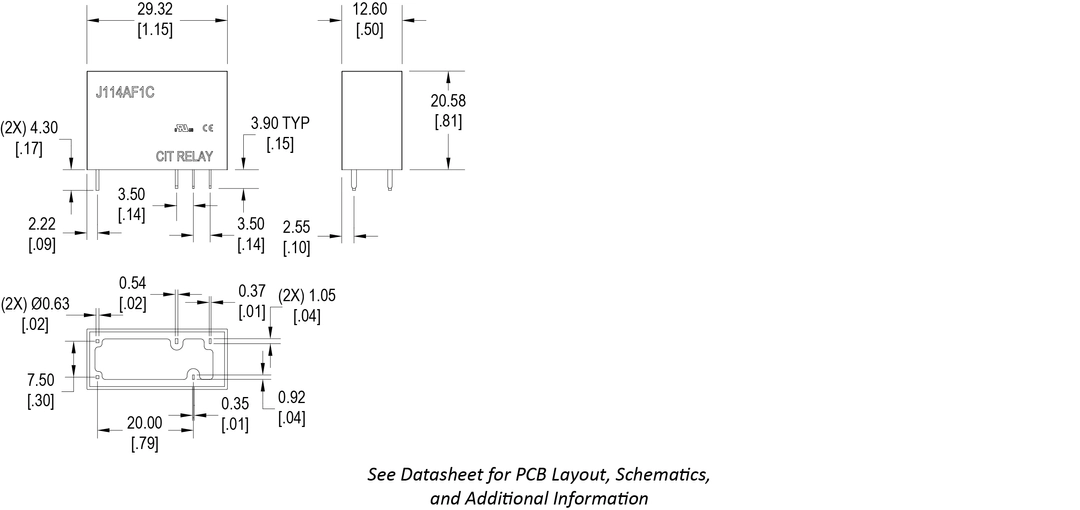

Dimensional Drawing
