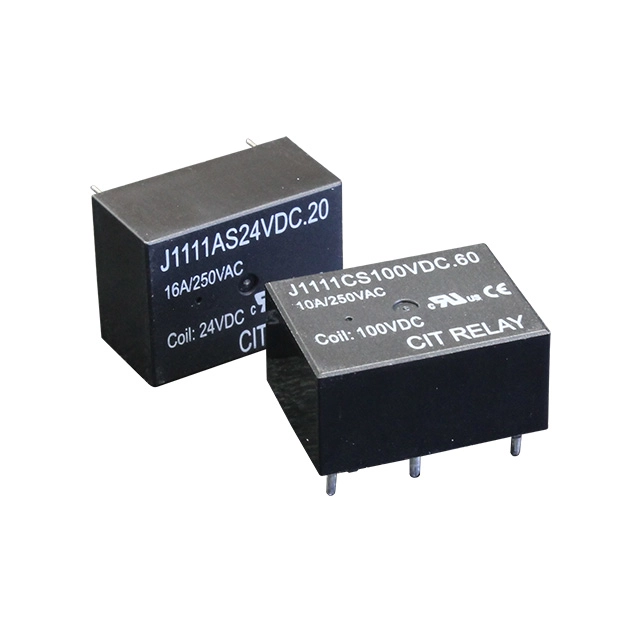

J111 Series
The J111 Series relay offers a small size, light weight package, ideal for high density mounting. This PC pin mounted relay offers 1A or 1C contact arrangement with coil voltage ranging from 5VDC up to 24VDC with coil power of .20W or .45W. Dimensions are 22.2 x 16.5 x 10.9mm. UL Agency approval is E197852.
Features
Low Profile, Small Size and Light Weight, Coil Voltages up to 100VDC, UL/cUL Certified
Specification
Contact Rating
16A@250VAC Resistive, 10A@250VAC Resistive
Contact Forms
1A, 1C
Coil Voltage
5VDC, 12VDC, 24VDC
Coil Power
.20W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197852

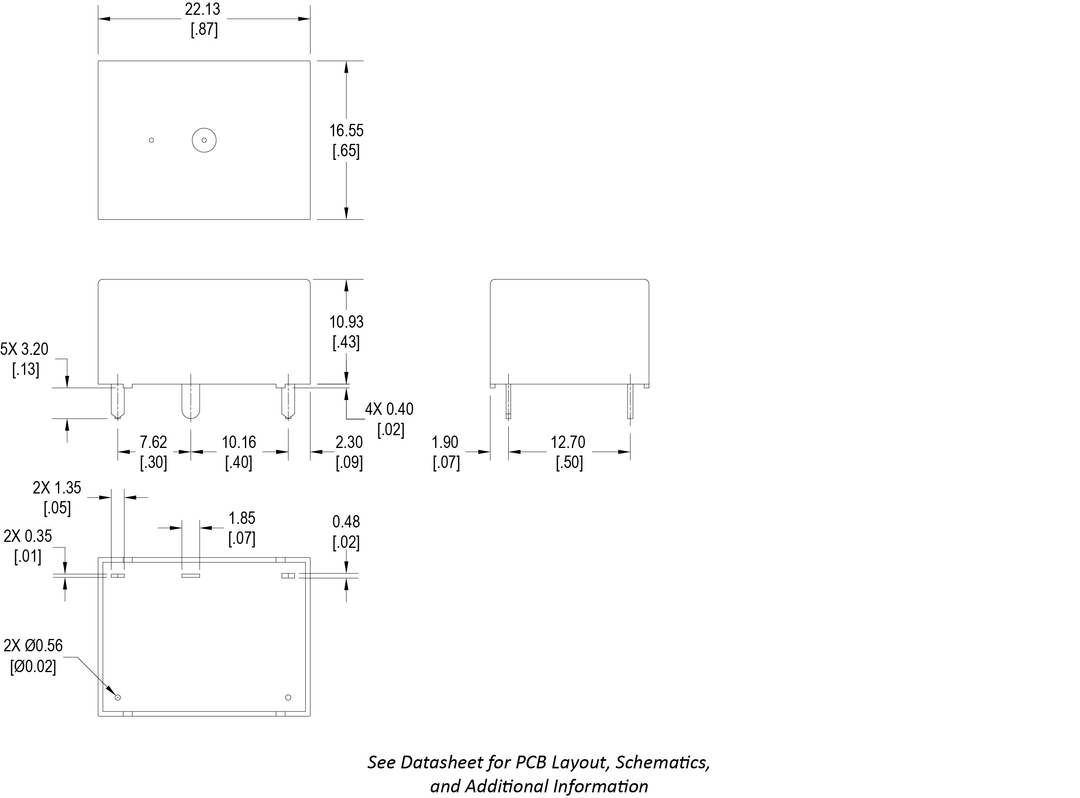

Dimensional Drawing
