J109F Series

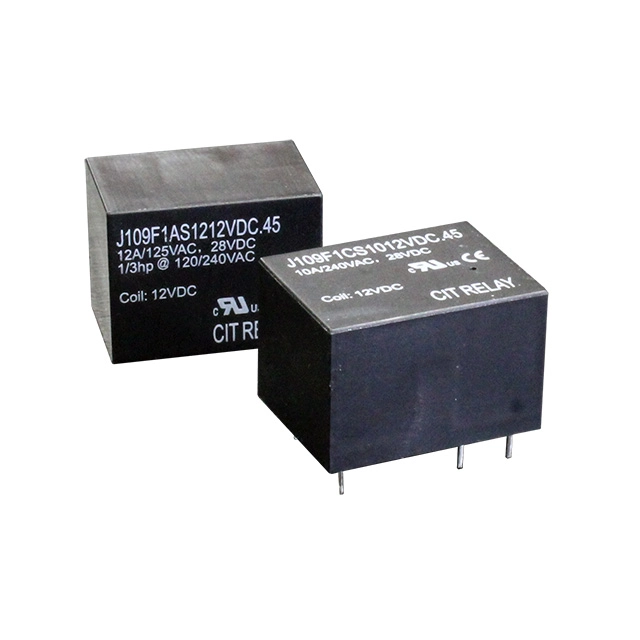

F Class insulation is standard on the J109F Series relay. Light-weight and small in size, the J109F Series is PC pin mountable with contact arrangement options of 1A, 1B, or 1C. Coil voltage ranges from 5VDC up to 48VDC with coil power options of .36W, .45W, .50w or .80W. Dimensions are 22.3 x 17.3 x 14.5mm UL Agency approval is E197851.
Features
F Class Insulation Standard, Light Weight and Small Size, PC Board Mounting, UL/cUL Certified
Specification
Contact Rating
10A Contact: 6A@28VDC and 300VAC Resistive, 10A@240VAC Resistive, 10A@28VDC and 125VAC General Purpose; 12A Contact: 12A@28VDC and 125VAC General Purpose, 1/3hp@120VAC and 240VAC
Contact Forms
1A, 1B, 1C
Coil Voltage
5VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.36W, .45W, .50W, .80W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

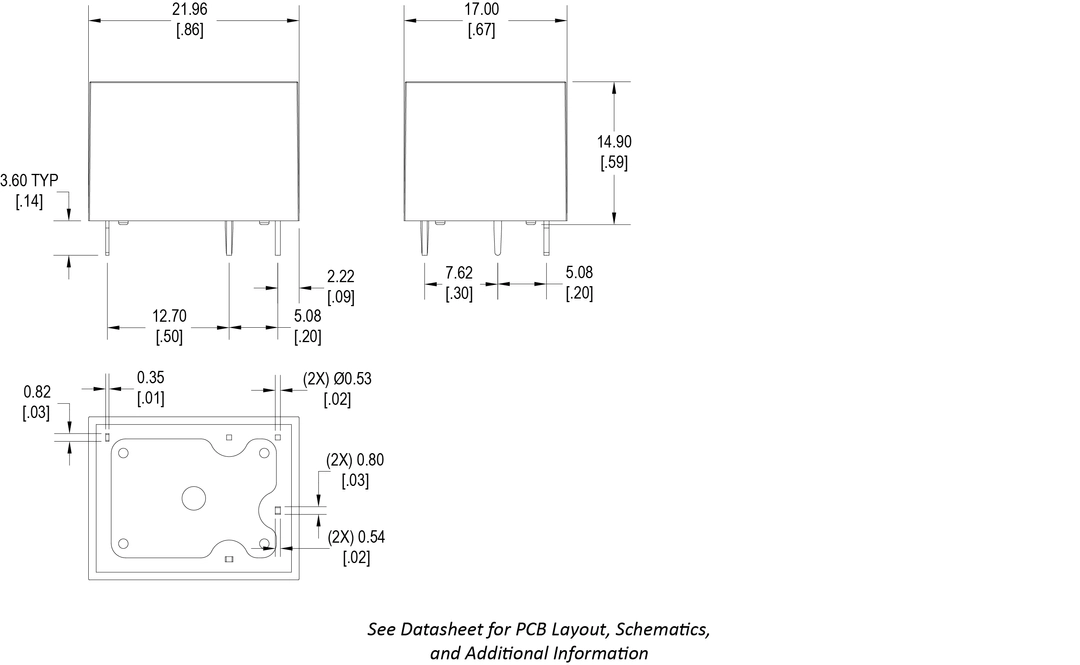

Dimensional Drawing
