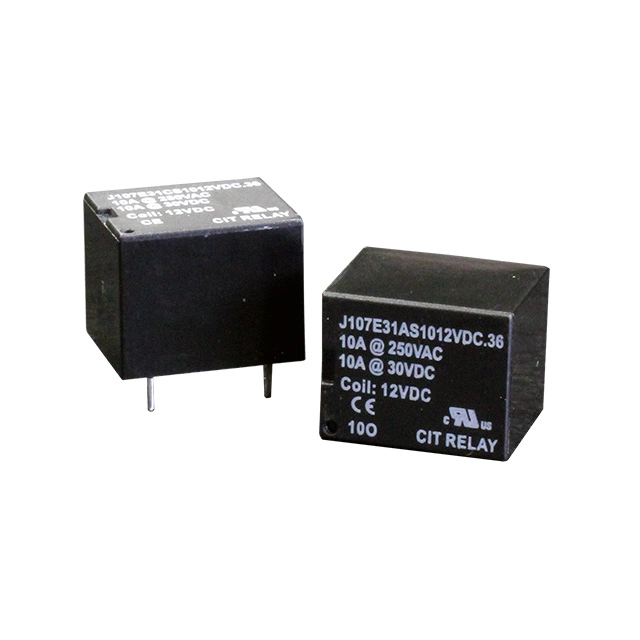

J107E3 Series
The J107E3 Series relay is small in size with PC pin mounting. Contact arrangement options are 1A, 1B, or 1C with coil voltage from 3VDC up to 48VDC and coil power options of .36W or .45W. Dimensions are 19.0 x 15.5 x 15.3mm. UL Agency approval is E197851.
Features
Small Size, PC Board Mounting, UL/cUL Certified
Specification
Contact Rating
10A@250VAC, 10A@30VDC
Contact Forms
1A, 1B, 1C
Coil Voltage
3VDC, 5VDC, 9VDC, 12VDC, 24VDC, 48VDC
Coil Power
.36W, .45W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

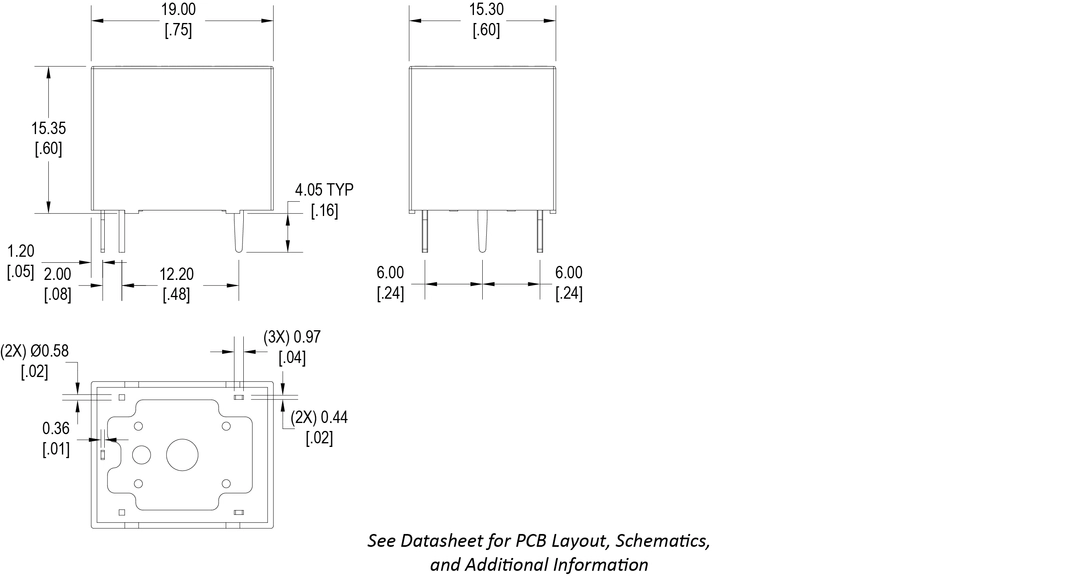

Dimensional Drawing
