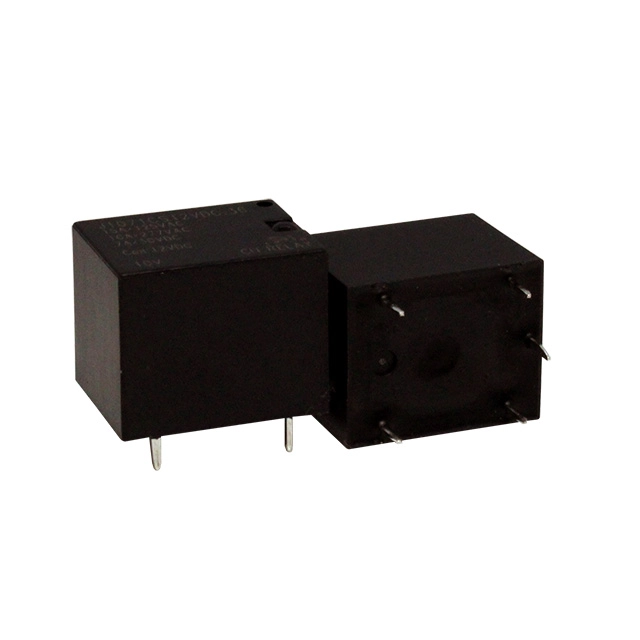

J107 Series
With switching capacity up to 15A, the J107 Series relay offers a small, light-weight package. Contact arrangement is 1A or 1C with voltage options from 3VDC up to 48VDC. Coil Power is .36W. The J107 Series dimensions are 19.0 x 15.4 x 15.5mm. UL Agency approval is E197851.
Features
Small Size, Popular PC Board Mounting, 15A Switching Capacity, UL/cUL Recognized
Specification
Contact Rating
15A@125VAC General Purpose, 10A@120VAC Resistive, 10A@277VAC General Purpose, 7A@240VAC Resistive, 7A@30VDC General Purpose, 18hp@125VAC/277VAC,TV-5@125VAC, 60W@120VAC Ballast, 150W@120VAC Electronic Ballast
Contact Forms
1A, 1C
Coil Voltage
3VDC, 5VDC, 6VDC, 9VDC, 12VDC, 18VDC, 24VDC, 48VDC
Coil Power
.36W
Mounting Methods
PC Pin
Agency Approvals
UL E197851

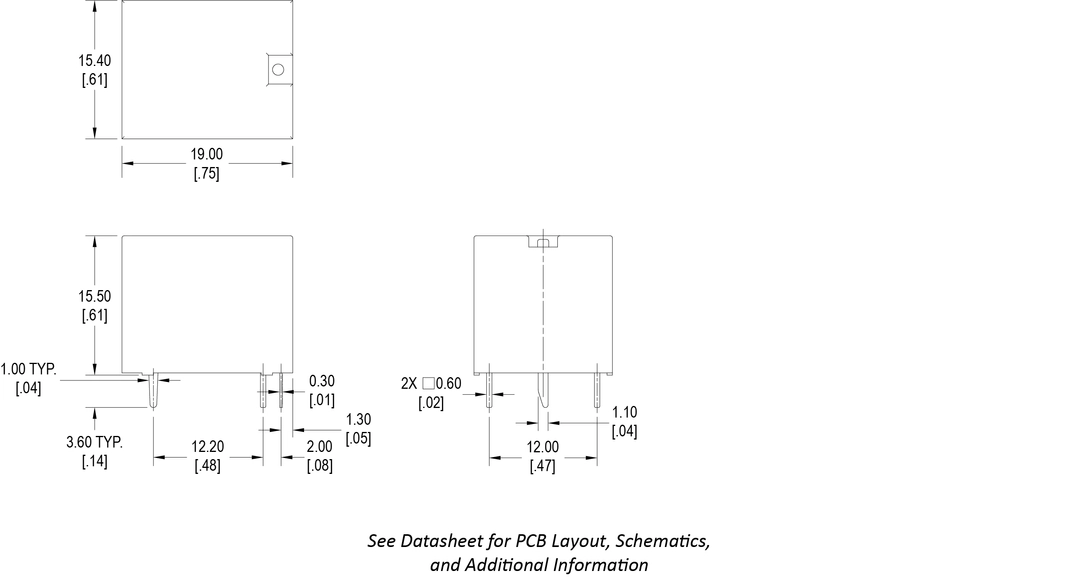

Dimensional Drawing
